De IT ECO PRO HSS Spiraalboor DIN 338 is ontwikkeld voor een lange standtijd en optimale spaanafvoer. De geslepen boor met cilindrische schacht en 118° tophoek is voorzien van een kruisaanslijping (vanaf 3,0 mm), wat voorcentreren overbodig maakt. De TiN coating zorgt voor minder wrijving en slijtage. Boren kleiner dan 3 mm zijn vol-gecoat; boren vanaf 3 mm zijn voorzien van een TiN-tip.Korte blank geslepen zelfcentrerende spiraalboor met TiN-tip. TiN-tip coating voor lange standtijd en optimale spaanafvoer. Industrie kwaliteit.

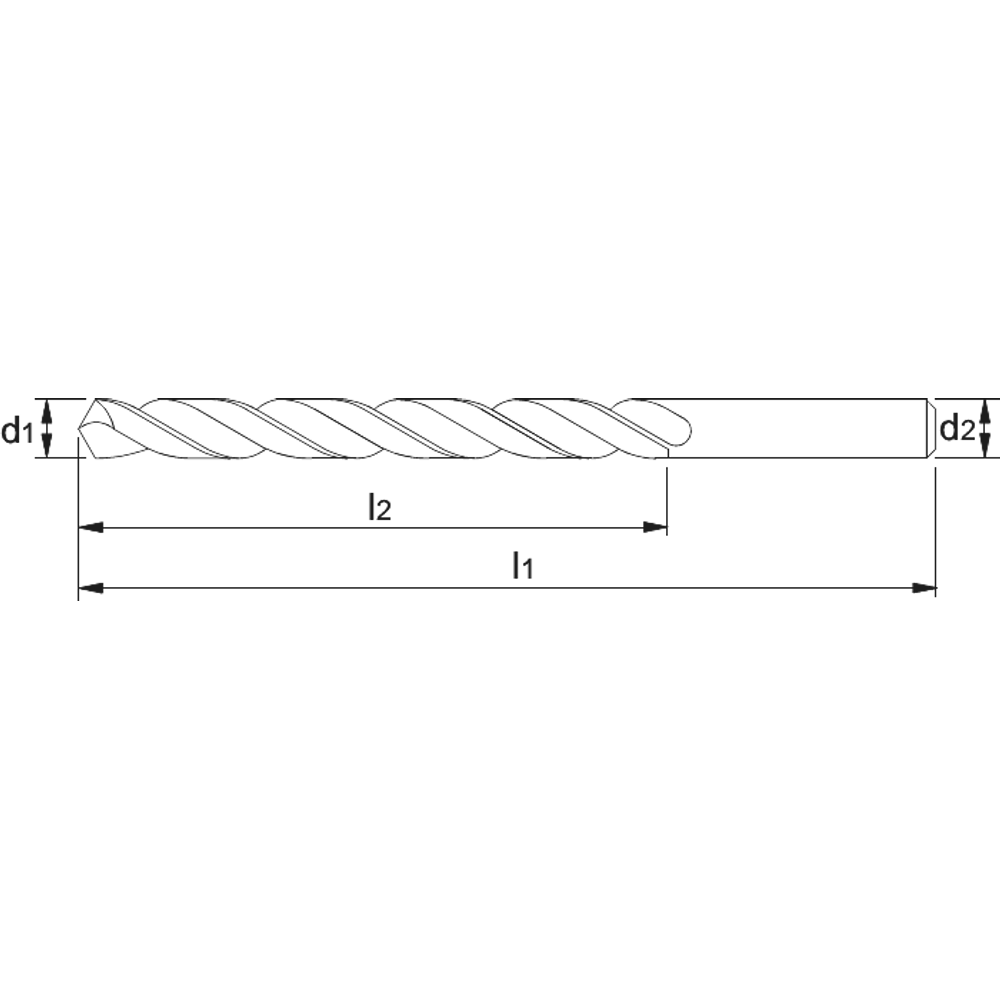

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 114310100 | 1 mm | 12 mm | 34 mm | 1 mm |
| 114310110 | 1.1 mm | 14 mm | 36 mm | 1.1 mm |
| 114310120 | 1.2 mm | 16 mm | 38 mm | 1.2 mm |
| 114310130 | 1.3 mm | 16 mm | 38 mm | 1.3 mm |
| 114310140 | 1.4 mm | 18 mm | 40 mm | 1.4 mm |
| 114310150 | 1.5 mm | 18 mm | 40 mm | 1.5 mm |
| 114310160 | 1.6 mm | 20 mm | 43 mm | 1.6 mm |
| 114310170 | 1.7 mm | 20 mm | 43 mm | 1.7 mm |
| 114310180 | 1.8 mm | 22 mm | 46 mm | 1.8 mm |
| 114310190 | 1.9 mm | 22 mm | 46 mm | 1.9 mm |
| 114310200 | 2 mm | 24 mm | 49 mm | 2 mm |
| 114310210 | 2.1 mm | 24 mm | 49 mm | 2.1 mm |
| 114310220 | 2.2 mm | 27 mm | 53 mm | 2.2 mm |
| 114310230 | 2.3 mm | 27 mm | 53 mm | 2.3 mm |
| 114310240 | 2.4 mm | 30 mm | 57 mm | 2.4 mm |
| 114310250 | 2.5 mm | 30 mm | 57 mm | 2.5 mm |
| 114310260 | 2.6 mm | 30 mm | 57 mm | 2.6 mm |
| 114310270 | 2.7 mm | 33 mm | 61 mm | 2.7 mm |
| 114310280 | 2.8 mm | 33 mm | 61 mm | 2.8 mm |
| 114310290 | 2.9 mm | 33 mm | 61 mm | 2.9 mm |
| 114310300 | 3 mm | 33 mm | 61 mm | 3 mm |
| 114310310 | 3.1 mm | 36 mm | 65 mm | 3.1 mm |
| 114310320 | 3.2 mm | 36 mm | 65 mm | 3.2 mm |
| 114310330 | 3.3 mm | 36 mm | 65 mm | 3.3 mm |
| 114310340 | 3.4 mm | 39 mm | 70 mm | 3.4 mm |
| 114310350 | 3.5 mm | 39 mm | 70 mm | 3.5 mm |
| 114310360 | 3.6 mm | 39 mm | 70 mm | 3.6 mm |
| 114310370 | 3.7 mm | 39 mm | 70 mm | 3.7 mm |
| 114310380 | 3.8 mm | 43 mm | 75 mm | 3.8 mm |
| 114310390 | 3.9 mm | 43 mm | 75 mm | 3.9 mm |
| 114310400 | 4 mm | 43 mm | 75 mm | 4 mm |
| 114310410 | 4.1 mm | 43 mm | 75 mm | 4.1 mm |
| 114310420 | 4.2 mm | 43 mm | 75 mm | 4.2 mm |
| 114310430 | 4.3 mm | 47 mm | 80 mm | 4.3 mm |
| 114310440 | 4.4 mm | 47 mm | 80 mm | 4.4 mm |
| 114310450 | 4.5 mm | 47 mm | 80 mm | 4.5 mm |
| 114310460 | 4.6 mm | 47 mm | 80 mm | 4.6 mm |
| 114310470 | 4.7 mm | 47 mm | 80 mm | 4.7 mm |
| 114310480 | 4.8 mm | 52 mm | 86 mm | 4.8 mm |
| 114310490 | 4.9 mm | 52 mm | 86 mm | 4.9 mm |
| 114310500 | 5 mm | 52 mm | 86 mm | 5 mm |
| 114310510 | 5.1 mm | 52 mm | 86 mm | 5.1 mm |
| 114310520 | 5.2 mm | 52 mm | 86 mm | 5.2 mm |
| 114310530 | 5.3 mm | 52 mm | 86 mm | 5.3 mm |
| 114310540 | 5.4 mm | 57 mm | 93 mm | 5.4 mm |
| 114310550 | 5.5 mm | 57 mm | 93 mm | 5.5 mm |
| 114310560 | 5.6 mm | 57 mm | 93 mm | 5.6 mm |
| 114310570 | 5.7 mm | 57 mm | 93 mm | 5.7 mm |
| 114310580 | 5.8 mm | 57 mm | 93 mm | 5.8 mm |
| 114310590 | 5.9 mm | 57 mm | 93 mm | 5.9 mm |
| 114310600 | 6 mm | 57 mm | 93 mm | 6 mm |
| 114310610 | 6.1 mm | 63 mm | 101 mm | 6.1 mm |
| 114310620 | 6.2 mm | 63 mm | 101 mm | 6.2 mm |
| 114310630 | 6.3 mm | 63 mm | 101 mm | 6.3 mm |
| 114310640 | 6.4 mm | 63 mm | 101 mm | 6.4 mm |
| 114310650 | 6.5 mm | 63 mm | 101 mm | 6.5 mm |
| 114310660 | 6.6 mm | 63 mm | 101 mm | 6.6 mm |
| 114310670 | 6.7 mm | 63 mm | 101 mm | 6.7 mm |
| 114310680 | 6.8 mm | 69 mm | 109 mm | 6.8 mm |
| 114310690 | 6.9 mm | 69 mm | 109 mm | 6.9 mm |
| 114310700 | 7 mm | 69 mm | 109 mm | 7 mm |
| 114310710 | 7.1 mm | 69 mm | 109 mm | 7.1 mm |
| 114310720 | 7.2 mm | 69 mm | 109 mm | 7.2 mm |
| 114310730 | 7.3 mm | 69 mm | 109 mm | 7.3 mm |
| 114310740 | 7.4 mm | 69 mm | 109 mm | 7.4 mm |
| 114310750 | 7.5 mm | 69 mm | 109 mm | 7.5 mm |
| 114310760 | 7.6 mm | 75 mm | 117 mm | 7.6 mm |
| 114310770 | 7.7 mm | 75 mm | 117 mm | 7.7 mm |
| 114310780 | 7.8 mm | 75 mm | 117 mm | 7.8 mm |
| 114310790 | 7.9 mm | 75 mm | 117 mm | 7.9 mm |
| 114310800 | 8 mm | 75 mm | 117 mm | 8 mm |
| 114310810 | 8.1 mm | 75 mm | 117 mm | 8.1 mm |
| 114310820 | 8.2 mm | 75 mm | 117 mm | 8.2 mm |
| 114310830 | 8.3 mm | 75 mm | 117 mm | 8.3 mm |
| 114310840 | 8.4 mm | 75 mm | 117 mm | 8.4 mm |
| 114310850 | 8.5 mm | 75 mm | 117 mm | 8.5 mm |
| 114310860 | 8.6 mm | 81 mm | 125 mm | 8.6 mm |
| 114310870 | 8.7 mm | 81 mm | 125 mm | 8.7 mm |
| 114310880 | 8.8 mm | 81 mm | 125 mm | 8.8 mm |
| 114310890 | 8.9 mm | 81 mm | 125 mm | 8.9 mm |
| 114310900 | 9 mm | 81 mm | 125 mm | 9 mm |
| 114310910 | 9.1 mm | 81 mm | 125 mm | 9.1 mm |
| 114310920 | 9.2 mm | 81 mm | 125 mm | 9.2 mm |
| 114310930 | 9.3 mm | 81 mm | 125 mm | 9.3 mm |
| 114310940 | 9.4 mm | 81 mm | 125 mm | 9.4 mm |
| 114310950 | 9.5 mm | 81 mm | 125 mm | 9.5 mm |
| 114310960 | 9.6 mm | 87 mm | 133 mm | 9.6 mm |
| 114310970 | 9.7 mm | 87 mm | 133 mm | 9.7 mm |
| 114310980 | 9.8 mm | 87 mm | 133 mm | 9.8 mm |
| 114310990 | 9.9 mm | 87 mm | 133 mm | 9.9 mm |
| 114311000 | 10 mm | 87 mm | 133 mm | 10 mm |
| 114311010 | 10.1 mm | 87 mm | 133 mm | 10.1 mm |
| 114311020 | 10.2 mm | 87 mm | 133 mm | 10.2 mm |
| 114311030 | 10.3 mm | 87 mm | 133 mm | 10.3 mm |
| 114311040 | 10.4 mm | 87 mm | 133 mm | 10.4 mm |
| 114311050 | 10.5 mm | 87 mm | 133 mm | 10.5 mm |
| 114311060 | 10.6 mm | 87 mm | 133 mm | 10.6 mm |
| 114311070 | 10.7 mm | 94 mm | 142 mm | 10.7 mm |
| 114311080 | 10.8 mm | 94 mm | 142 mm | 10.8 mm |
| 114311090 | 10.9 mm | 94 mm | 142 mm | 10.9 mm |
| 114311100 | 11 mm | 94 mm | 142 mm | 11 mm |
| 114311120 | 11.2 mm | 94 mm | 142 mm | 11.2 mm |
| 114311150 | 11.5 mm | 94 mm | 142 mm | 11.5 mm |
| 114311180 | 11.8 mm | 94 mm | 142 mm | 11.8 mm |
| 114311200 | 12 mm | 101 mm | 151 mm | 12 mm |
| 114311220 | 12.2 mm | 101 mm | 151 mm | 12.2 mm |
| 114311250 | 12.5 mm | 101 mm | 151 mm | 12.5 mm |
| 114311280 | 12.8 mm | 101 mm | 151 mm | 12.8 mm |
| 114311300 | 13 mm | 101 mm | 151 mm | 13 mm |
