Morse conus opname, extra lange uitvoering, spiraalgroeven, uit M42-staal

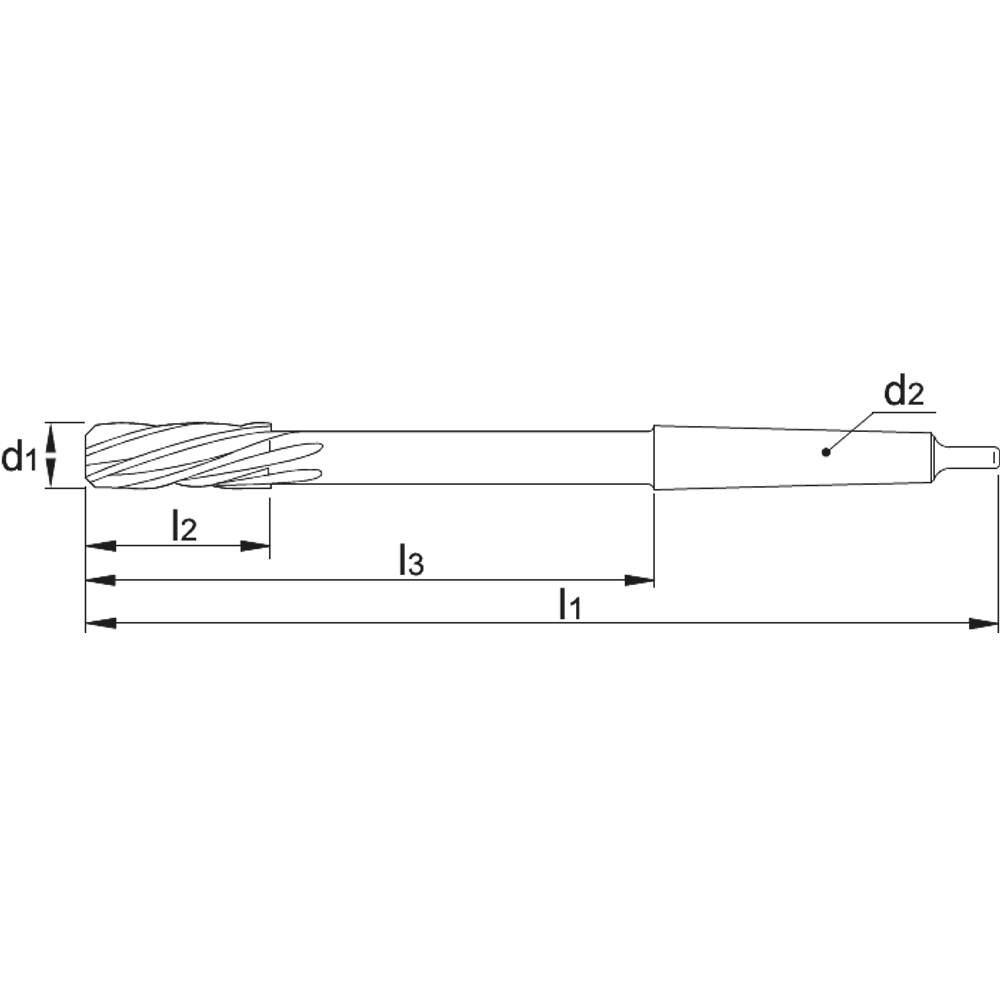

Maten en specificaties
| Artikelnummer | d1 | l2 | l3 | l1 |
|---|---|---|---|---|
| 516001300 | 13 mm | 22 mm | 180 mm | 245 mm |
| 516001400 | 14 mm | 22 mm | 180 mm | 245 mm |
| 516001500 | 15 mm | 22 mm | 180 mm | 260 mm |
| 516001600 | 16 mm | 25 mm | 180 mm | 260 mm |
| 516001800 | 18 mm | 25 mm | 180 mm | 260 mm |
| 516002000 | 20 mm | 28 mm | 190 mm | 270 mm |
| 516002200 | 22 mm | 28 mm | 200 mm | 280 mm |
| 516002400 | 24 mm | 32 mm | 200 mm | 300 mm |
| 516002500 | 25 mm | 32 mm | 220 mm | 320 mm |
| 516002600 | 26 mm | 32 mm | 230 mm | 330 mm |
| 516002800 | 28 mm | 32 mm | 240 mm | 340 mm |
| 516003000 | 30 mm | 36 mm | 250 mm | 350 mm |
| 516003200 | 32 mm | 36 mm | 250 mm | 375 mm |
| 516003400 | 34 mm | 36 mm | 250 mm | 375 mm |
| 516003600 | 36 mm | 40 mm | 250 mm | 375 mm |
| 516003800 | 38 mm | 40 mm | 270 mm | 395 mm |
