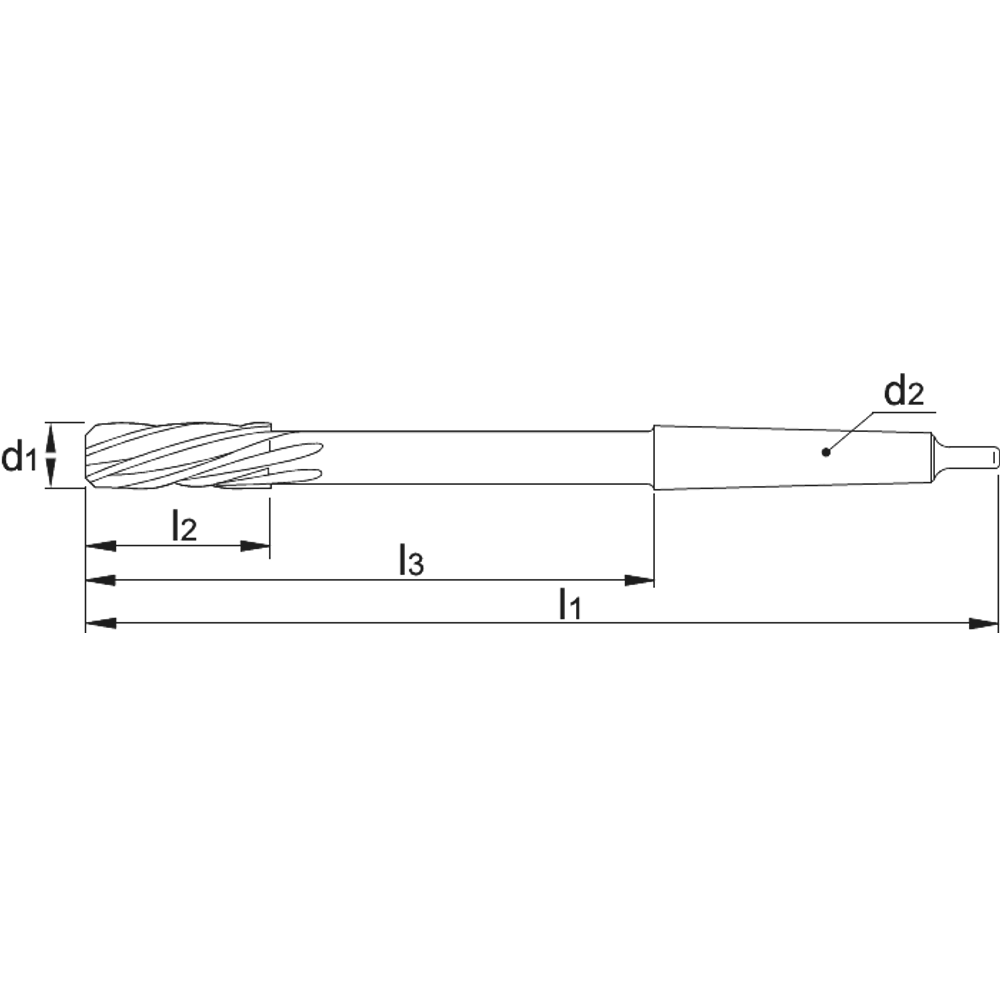

Phantom HSS-E Machineruimer, inch-maten DIN 208 vorm B H7 MK

DIN 208, Morse conus opname, inch-maten, spiraalgroeven

Artikelnummer	d1	d1	l2	l3	l1
515700794	7.937 mm	5/16 inch	33 mm	90 mm	156 mm
515700952	9.525 mm	3/8 inch	38 mm	102 mm	168 mm
515701111	11.112 mm	7/16 inch	44 mm	116 mm	182 mm
515701270	12.7 mm	1/2 inch	44 mm	116 mm	182 mm
515701429	14.287 mm	9/16 inch	50 mm	124 mm	204 mm
515701588	15.875 mm	5/8 inch	52 mm	130 mm	210 mm
515701905	19.05 mm	3/4 inch	58 mm	143 mm	223 mm
515702222	22.225 mm	7/8 inch	64 mm	157 mm	237 mm
515702540	25.4 mm	1 inch	70 mm	173 mm	273 mm
