DIN 208, Morse conus opname, spiraalgroeven, spiraalhoek 45°.LET OP! Dit product is uitlopend.

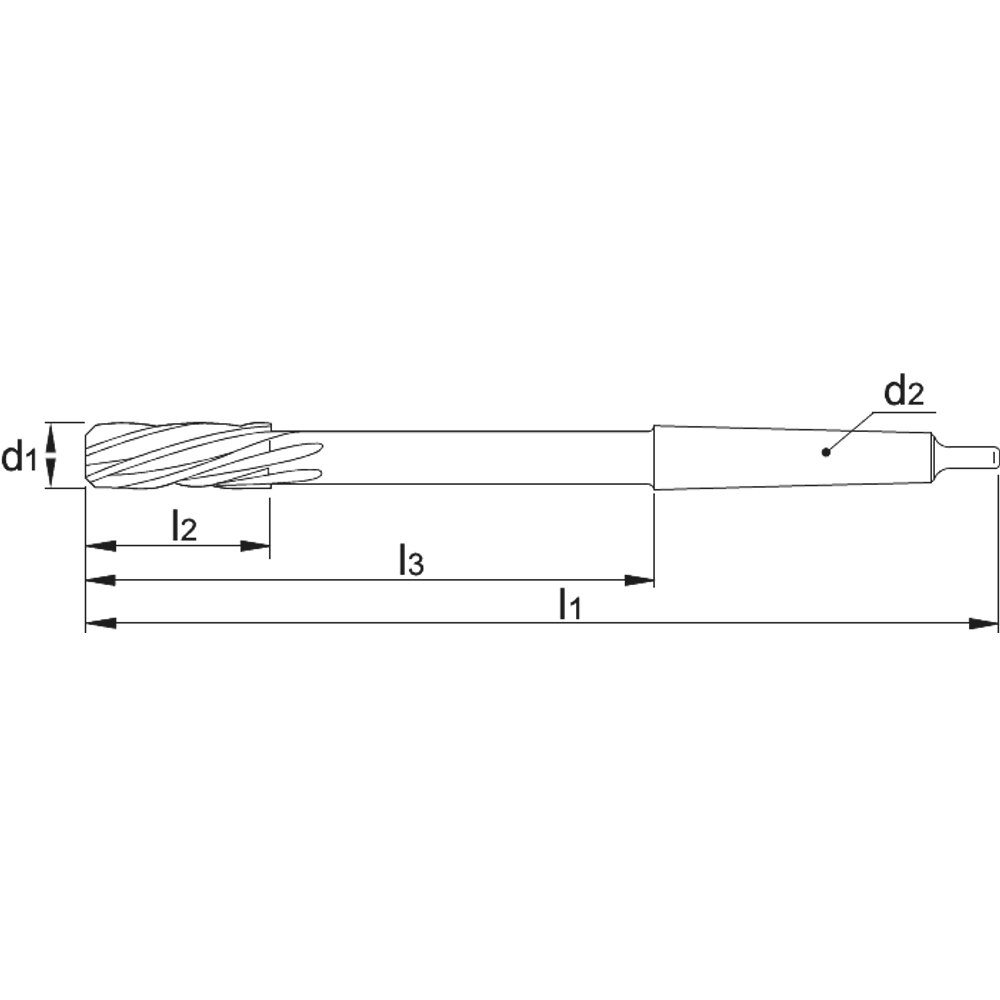

Maten en specificaties
| Artikelnummer | d1 | l2 | l3 | l1 |
|---|---|---|---|---|
| 516201400 | 14 mm | 47 mm | 123 mm | 189 mm |
| 516201500 | 15 mm | 50 mm | 124 mm | 204 mm |
| 516201600 | 16 mm | 52 mm | 130 mm | 210 mm |
| 516201700 | 17 mm | 54 mm | 134 mm | 214 mm |
| 516202100 | 21 mm | 62 mm | 152 mm | 232 mm |
| 516202200 | 22 mm | 64 mm | 157 mm | 237 mm |
| 516202400 | 24 mm | 68 mm | 168 mm | 268 mm |
| 516202600 | 26 mm | 70 mm | 173 mm | 273 mm |
| 516202700 | 27 mm | 71 mm | 177 mm | 277 mm |
| 516202800 | 28 mm | 71 mm | 177 mm | 277 mm |
| 516203000 | 30 mm | 73 mm | 181 mm | 281 mm |
| 516203100 | 31 mm | 77 mm | 193 mm | 285 mm |
| 516203200 | 32 mm | 77 mm | 193 mm | 317 mm |
| 516203300 | 33 mm | 77 mm | 193 mm | 317 mm |
| 516203400 | 34 mm | 78 mm | 197 mm | 321 mm |
| 516203500 | 35 mm | 78 mm | 197 mm | 321 mm |
