~DIN 212, cilindrische schacht, passing H7, spiraalgroeven, 45°, spiraalhoek

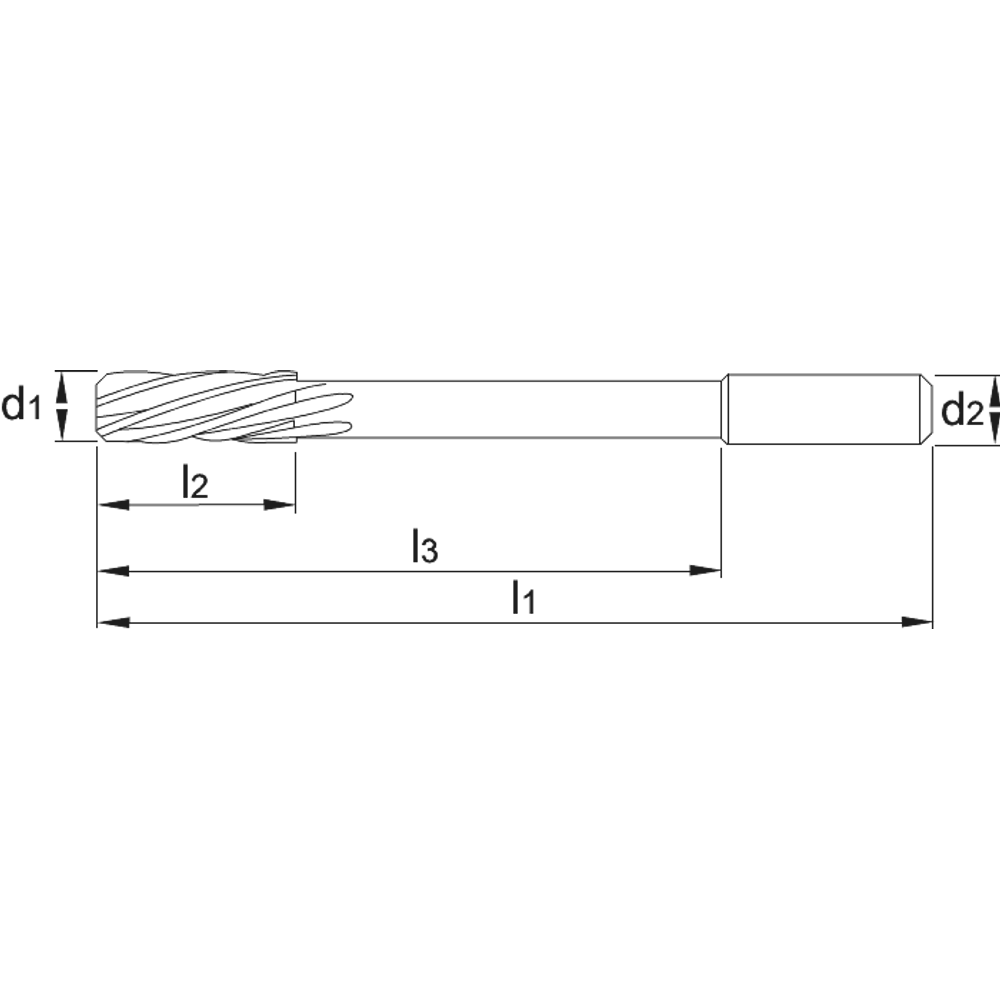

Maten en specificaties
| Artikelnummer | d1 | l2 | l3 | l1 | d2 |
|---|---|---|---|---|---|
| 514200300 | 3 mm | 20 mm | 42 mm | 61 mm | 3 mm |
| 514200400 | 4 mm | 24 mm | 51 mm | 75 mm | 4 mm |
| 514200500 | 5 mm | 26 mm | 60 mm | 86 mm | 5 mm |
| 514200600 | 6 mm | 28 mm | 73 mm | 101 mm | 6 mm |
| 514200700 | 7 mm | 31 mm | 80 mm | 109 mm | 7 mm |
| 514200800 | 8 mm | 33 mm | 86 mm | 117 mm | 8 mm |
| 514200850 | 8.5 mm | 33 mm | 84 mm | 117 mm | 8 mm |
| 514200900 | 9 mm | 36 mm | 91 mm | 125 mm | 9 mm |
| 514201000 | 10 mm | 38 mm | 99 mm | 133 mm | 10 mm |
| 514201200 | 12 mm | 44 mm | 106 mm | 151 mm | 12 mm |
