Phantom HSS-E Spiraalboor DIN 1869 type TS De HSS-E (kobaltgelegeerd) spiraalboor voor extra diepe gaten. Dankzij het materiaal is deze boor ook geschikt voor RVS en moeilijk te verspanen materialen. De parabolisch geslepen spaankamer (type TS) garandeert een optimale spaanafvoer, waardoor u minder vaak hoeft te lossen. De genitreerde geleiding biedt extra slijtvastheid, terwijl de 130° tophoek met kruisaanslijping precies en licht boren mogelijk maakt. Wij adviseren een startgat te maken.
Maten en specificaties

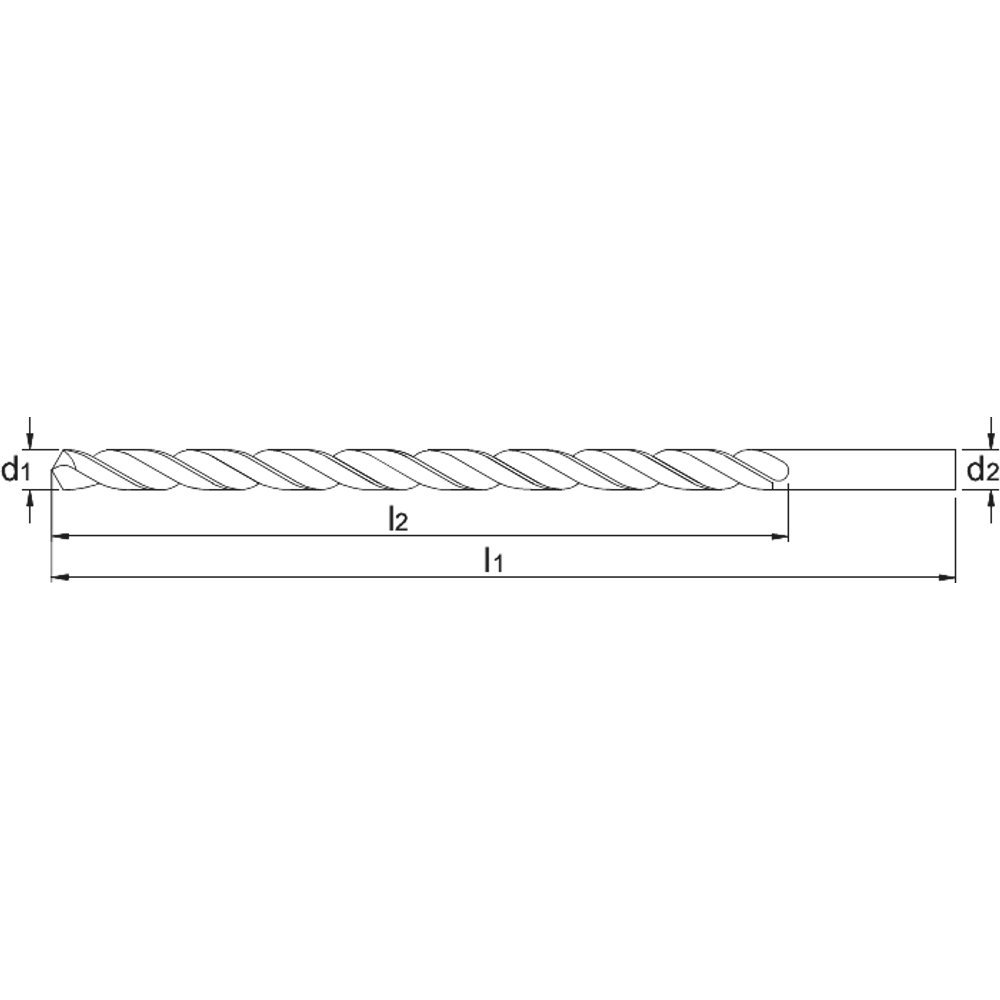

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 119400301 | 3 mm | 100 mm | 150 mm | 3 mm |
| 119400303 | 3 mm | 130 mm | 190 mm | 3 mm |
| 119400351 | 3.5 mm | 115 mm | 165 mm | 3.5 mm |
| 119400353 | 3.5 mm | 145 mm | 210 mm | 3.5 mm |
| 119400355 | 3.5 mm | 180 mm | 265 mm | 3.5 mm |
| 119400401 | 4 mm | 120 mm | 175 mm | 4 mm |
| 119400403 | 4 mm | 150 mm | 220 mm | 4 mm |
| 119400405 | 4 mm | 190 mm | 280 mm | 4 mm |
| 119400451 | 4.5 mm | 125 mm | 185 mm | 4.5 mm |
| 119400453 | 4.5 mm | 160 mm | 235 mm | 4.5 mm |
| 119400501 | 5 mm | 135 mm | 195 mm | 5 mm |
| 119400503 | 5 mm | 170 mm | 245 mm | 5 mm |
| 119400505 | 5 mm | 210 mm | 315 mm | 5 mm |
| 119400551 | 5.5 mm | 140 mm | 205 mm | 5.5 mm |
| 119400553 | 5.5 mm | 180 mm | 260 mm | 5.5 mm |
| 119400601 | 6 mm | 140 mm | 205 mm | 6 mm |
| 119400603 | 6 mm | 180 mm | 260 mm | 6 mm |
| 119400605 | 6 mm | 225 mm | 330 mm | 6 mm |
| 119400651 | 6.5 mm | 150 mm | 215 mm | 6.5 mm |
| 119400653 | 6.5 mm | 190 mm | 275 mm | 6.5 mm |
| 119400701 | 7 mm | 155 mm | 225 mm | 7 mm |
| 119400703 | 7 mm | 200 mm | 290 mm | 7 mm |
| 119400705 | 7 mm | 250 mm | 370 mm | 7 mm |
| 119400751 | 7.5 mm | 155 mm | 225 mm | 7.5 mm |
| 119400753 | 7.5 mm | 200 mm | 290 mm | 7.5 mm |
| 119400801 | 8 mm | 165 mm | 240 mm | 8 mm |
| 119400803 | 8 mm | 210 mm | 305 mm | 8 mm |
| 119400805 | 8 mm | 265 mm | 390 mm | 8 mm |
| 119400851 | 8.5 mm | 165 mm | 240 mm | 8.5 mm |
| 119400853 | 8.5 mm | 210 mm | 305 mm | 8.5 mm |
| 119400901 | 9 mm | 175 mm | 250 mm | 9 mm |
| 119400903 | 9 mm | 220 mm | 320 mm | 9 mm |
| 119400905 | 9 mm | 280 mm | 410 mm | 9 mm |
| 119400951 | 9.5 mm | 175 mm | 250 mm | 9.5 mm |
| 119400953 | 9.5 mm | 220 mm | 320 mm | 9.5 mm |
| 119401001 | 10 mm | 185 mm | 265 mm | 10 mm |
| 119401003 | 10 mm | 235 mm | 340 mm | 10 mm |
| 119401005 | 10 mm | 295 mm | 430 mm | 10 mm |
| 119401101 | 11 mm | 195 mm | 280 mm | 11 mm |
| 119401103 | 11 mm | 250 mm | 365 mm | 11 mm |
| 119401104 | 11 mm | 310 mm | 455 mm | 11 mm |
| 119401201 | 12 mm | 205 mm | 295 mm | 12 mm |
| 119401203 | 12 mm | 260 mm | 375 mm | 12 mm |
| 119401205 | 12 mm | 330 mm | 480 mm | 12 mm |
| 119401301 | 13 mm | 205 mm | 295 mm | 13 mm |
| 119401303 | 13 mm | 260 mm | 375 mm | 13 mm |
