De Phantom HSS-E Spiraalboor DIN 1897 is een extra korte boor met cilindrische schacht en gebronsd oppervlak, geschikt voor algemeen gebruik, met name in roestvast staal (RVS) plaatmateriaal. Vanaf 2,0 mm is de boor voorzien van een nauwkeurige kruisaanslijping en een tophoek van 135°, wat resulteert in uitstekende zelfcentrerende eigenschappen. Deze constructie maakt voorboren vaak overbodig en garandeert een nauwkeurige positionering. De extra korte uitvoering verhoogt de stabiliteit tijdens het boren.

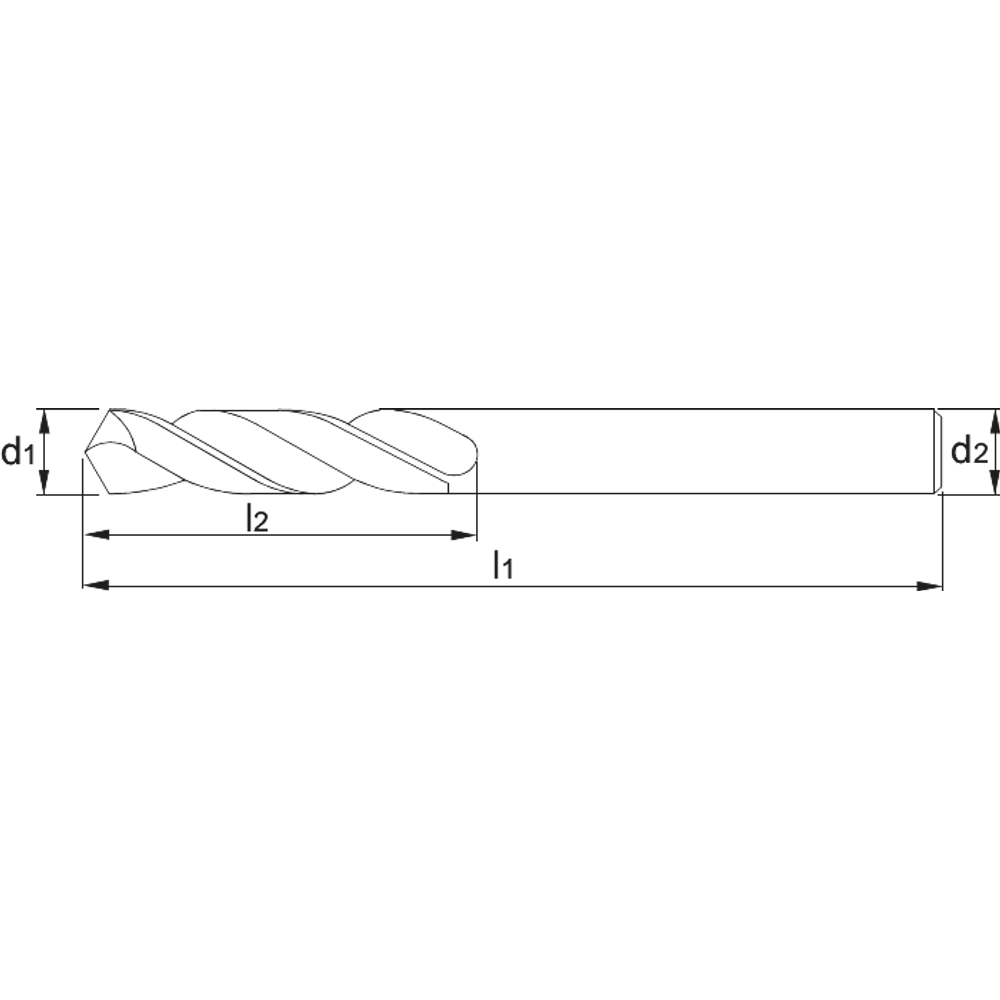

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 111600100 | 1 mm | 6 mm | 26 mm | 1 mm |
| 111600120 | 1.2 mm | 8 mm | 30 mm | 1.2 mm |
| 111600150 | 1.5 mm | 9 mm | 32 mm | 1.5 mm |
| 111600160 | 1.6 mm | 10 mm | 34 mm | 1.6 mm |
| 111600200 | 2 mm | 12 mm | 38 mm | 2 mm |
| 111600210 | 2.1 mm | 12 mm | 38 mm | 2.1 mm |
| 111600220 | 2.2 mm | 13 mm | 40 mm | 2.2 mm |
| 111600230 | 2.3 mm | 13 mm | 40 mm | 2.3 mm |
| 111600240 | 2.4 mm | 14 mm | 43 mm | 2.4 mm |
| 111600250 | 2.5 mm | 14 mm | 43 mm | 2.5 mm |
| 111600260 | 2.6 mm | 14 mm | 43 mm | 2.6 mm |
| 111600270 | 2.7 mm | 16 mm | 46 mm | 2.7 mm |
| 111600280 | 2.8 mm | 16 mm | 46 mm | 2.8 mm |
| 111600290 | 2.9 mm | 16 mm | 46 mm | 2.9 mm |
| 111600300 | 3 mm | 16 mm | 46 mm | 3 mm |
| 111600310 | 3.1 mm | 18 mm | 49 mm | 3.1 mm |
| 111600320 | 3.2 mm | 18 mm | 49 mm | 3.2 mm |
| 111600330 | 3.3 mm | 18 mm | 49 mm | 3.3 mm |
| 111600340 | 3.4 mm | 20 mm | 52 mm | 3.4 mm |
| 111600350 | 3.5 mm | 20 mm | 52 mm | 3.5 mm |
| 111600360 | 3.6 mm | 20 mm | 52 mm | 3.6 mm |
| 111600370 | 3.7 mm | 20 mm | 52 mm | 3.7 mm |
| 111600380 | 3.8 mm | 22 mm | 55 mm | 3.8 mm |
| 111600390 | 3.9 mm | 22 mm | 55 mm | 3.9 mm |
| 111600400 | 4 mm | 22 mm | 55 mm | 4 mm |
| 111600410 | 4.1 mm | 22 mm | 55 mm | 4.1 mm |
| 111600420 | 4.2 mm | 22 mm | 55 mm | 4.2 mm |
| 111600430 | 4.3 mm | 24 mm | 58 mm | 4.3 mm |
| 111600440 | 4.4 mm | 24 mm | 58 mm | 4.4 mm |
| 111600450 | 4.5 mm | 24 mm | 58 mm | 4.5 mm |
| 111600460 | 4.6 mm | 24 mm | 58 mm | 4.6 mm |
| 111600470 | 4.7 mm | 24 mm | 58 mm | 4.7 mm |
| 111600480 | 4.8 mm | 26 mm | 62 mm | 4.8 mm |
| 111600490 | 4.9 mm | 26 mm | 62 mm | 4.9 mm |
| 111600500 | 5 mm | 26 mm | 62 mm | 5 mm |
| 111600510 | 5.1 mm | 26 mm | 62 mm | 5.1 mm |
| 111600520 | 5.2 mm | 26 mm | 62 mm | 5.2 mm |
| 111600530 | 5.3 mm | 26 mm | 62 mm | 5.3 mm |
| 111600540 | 5.4 mm | 28 mm | 66 mm | 5.4 mm |
| 111600550 | 5.5 mm | 28 mm | 66 mm | 5.5 mm |
| 111600560 | 5.6 mm | 28 mm | 66 mm | 5.6 mm |
| 111600570 | 5.7 mm | 28 mm | 66 mm | 5.7 mm |
| 111600580 | 5.8 mm | 28 mm | 66 mm | 5.8 mm |
| 111600590 | 5.9 mm | 28 mm | 66 mm | 5.9 mm |
| 111600600 | 6 mm | 28 mm | 66 mm | 6 mm |
| 111600610 | 6.1 mm | 31 mm | 70 mm | 6.1 mm |
| 111600620 | 6.2 mm | 31 mm | 70 mm | 6.2 mm |
| 111600640 | 6.4 mm | 31 mm | 70 mm | 6.4 mm |
| 111600650 | 6.5 mm | 31 mm | 70 mm | 6.5 mm |
| 111600670 | 6.7 mm | 31 mm | 70 mm | 6.7 mm |
| 111600680 | 6.8 mm | 34 mm | 74 mm | 6.8 mm |
| 111600700 | 7 mm | 34 mm | 74 mm | 7 mm |
| 111600750 | 7.5 mm | 34 mm | 74 mm | 7.5 mm |
| 111600800 | 8 mm | 37 mm | 79 mm | 8 mm |
| 111600850 | 8.5 mm | 37 mm | 79 mm | 8.5 mm |
| 111600900 | 9 mm | 40 mm | 84 mm | 9 mm |
| 111600950 | 9.5 mm | 40 mm | 84 mm | 9.5 mm |
| 111601000 | 10 mm | 43 mm | 89 mm | 10 mm |
| 111601020 | 10.2 mm | 43 mm | 89 mm | 10.2 mm |
| 111601050 | 10.5 mm | 43 mm | 89 mm | 10.5 mm |
| 111601100 | 11 mm | 47 mm | 95 mm | 11 mm |
| 111601150 | 11.5 mm | 47 mm | 95 mm | 11.5 mm |
| 111601200 | 12 mm | 51 mm | 102 mm | 12 mm |
| 111601250 | 12.5 mm | 51 mm | 102 mm | 12.5 mm |
| 111601300 | 13 mm | 51 mm | 102 mm | 13 mm |
