De Phantom HSS-E Spiraalboor DIN 1897 TiN is een extra korte boor met cilindrische schacht en een slijtvaste TiN-coating voor een significant verhoogde standtijd. Geschikt voor algemeen gebruik, met name in plaatmateriaal. Vanaf een diameter van 2,0 mm beschikt deze boor over een nauwkeurige kruisaanslijping en een tophoek van 135°, wat resulteert in superieure zelfcentrerende eigenschappen en een nauwkeurige positionering zonder voorboren. De extra korte uitvoering draagt bij aan een verhoogde stabiliteit tijdens het bewerkingsproces.

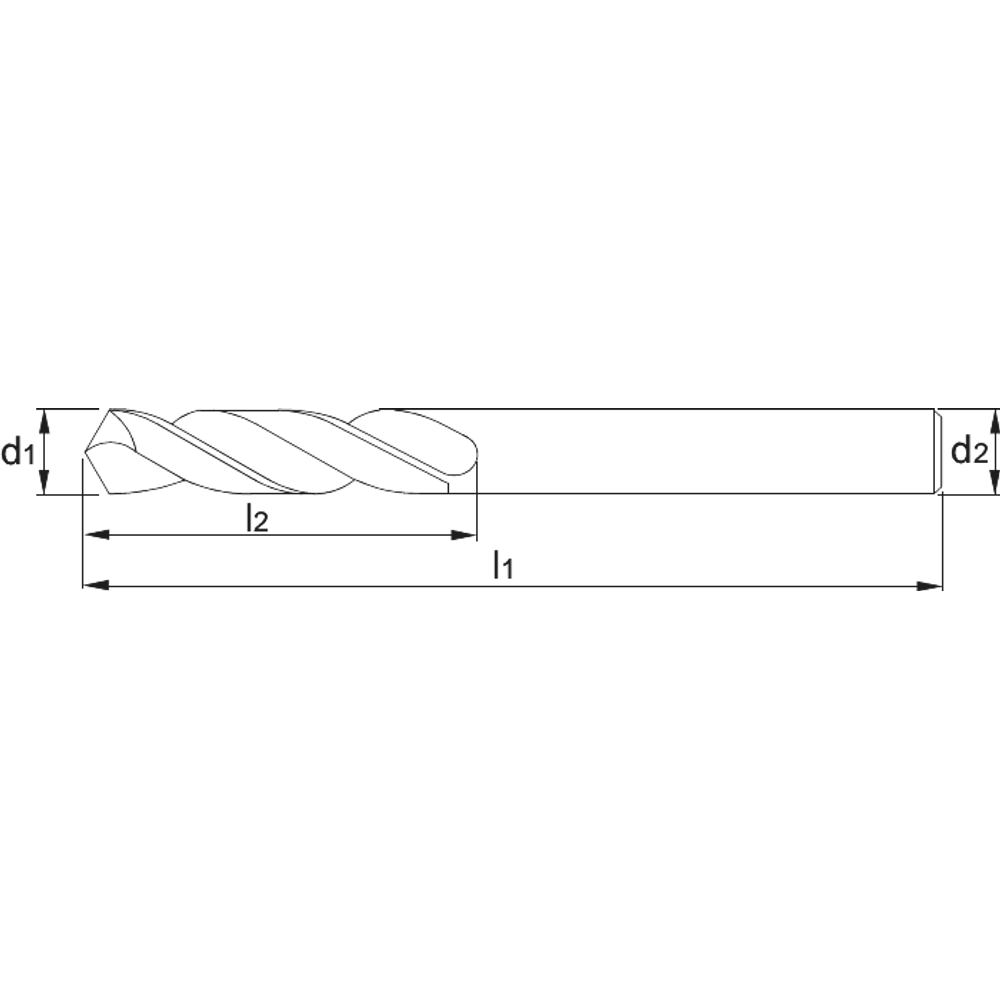

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 111610100 | 1 mm | 6 mm | 26 mm | 1 mm |
| 111610110 | 1.1 mm | 7 mm | 28 mm | 1.1 mm |
| 111610120 | 1.2 mm | 8 mm | 30 mm | 1.2 mm |
| 111610130 | 1.3 mm | 8 mm | 30 mm | 1.3 mm |
| 111610140 | 1.4 mm | 9 mm | 32 mm | 1.4 mm |
| 111610150 | 1.5 mm | 9 mm | 32 mm | 1.5 mm |
| 111610160 | 1.6 mm | 10 mm | 34 mm | 1.6 mm |
| 111610170 | 1.7 mm | 10 mm | 34 mm | 1.7 mm |
| 111610180 | 1.8 mm | 11 mm | 36 mm | 1.8 mm |
| 111610190 | 1.9 mm | 11 mm | 36 mm | 1.9 mm |
| 111610200 | 2 mm | 12 mm | 38 mm | 2 mm |
| 111610210 | 2.1 mm | 12 mm | 38 mm | 2.1 mm |
| 111610220 | 2.2 mm | 13 mm | 40 mm | 2.2 mm |
| 111610230 | 2.3 mm | 13 mm | 40 mm | 2.3 mm |
| 111610240 | 2.4 mm | 14 mm | 43 mm | 2.4 mm |
| 111610250 | 2.5 mm | 14 mm | 43 mm | 2.5 mm |
| 111610260 | 2.6 mm | 14 mm | 43 mm | 2.6 mm |
| 111610270 | 2.7 mm | 16 mm | 46 mm | 2.7 mm |
| 111610280 | 2.8 mm | 16 mm | 46 mm | 2.8 mm |
| 111610290 | 2.9 mm | 16 mm | 46 mm | 2.9 mm |
| 111610300 | 3 mm | 16 mm | 46 mm | 3 mm |
| 111610310 | 3.1 mm | 18 mm | 49 mm | 3.1 mm |
| 111610320 | 3.2 mm | 18 mm | 49 mm | 3.2 mm |
| 111610330 | 3.3 mm | 18 mm | 49 mm | 3.3 mm |
| 111610340 | 3.4 mm | 20 mm | 52 mm | 3.4 mm |
| 111610350 | 3.5 mm | 20 mm | 52 mm | 3.5 mm |
| 111610360 | 3.6 mm | 20 mm | 52 mm | 3.6 mm |
| 111610370 | 3.7 mm | 20 mm | 52 mm | 3.7 mm |
| 111610380 | 3.8 mm | 22 mm | 55 mm | 3.8 mm |
| 111610390 | 3.9 mm | 22 mm | 55 mm | 3.9 mm |
| 111610400 | 4 mm | 22 mm | 55 mm | 4 mm |
| 111610410 | 4.1 mm | 22 mm | 55 mm | 4.1 mm |
| 111610420 | 4.2 mm | 22 mm | 55 mm | 4.2 mm |
| 111610430 | 4.3 mm | 24 mm | 58 mm | 4.3 mm |
| 111610440 | 4.4 mm | 24 mm | 58 mm | 4.4 mm |
| 111610450 | 4.5 mm | 24 mm | 58 mm | 4.5 mm |
| 111610460 | 4.6 mm | 24 mm | 58 mm | 4.6 mm |
| 111610470 | 4.7 mm | 24 mm | 58 mm | 4.7 mm |
| 111610480 | 4.8 mm | 26 mm | 62 mm | 4.8 mm |
| 111610490 | 4.9 mm | 26 mm | 62 mm | 4.9 mm |
| 111610500 | 5 mm | 26 mm | 62 mm | 5 mm |
| 111610510 | 5.1 mm | 26 mm | 62 mm | 5.1 mm |
| 111610520 | 5.2 mm | 26 mm | 62 mm | 5.2 mm |
| 111610530 | 5.3 mm | 26 mm | 62 mm | 5.3 mm |
| 111610550 | 5.5 mm | 28 mm | 66 mm | 5.5 mm |
| 111610570 | 5.7 mm | 28 mm | 66 mm | 5.7 mm |
| 111610580 | 5.8 mm | 28 mm | 66 mm | 5.8 mm |
| 111610600 | 6 mm | 28 mm | 66 mm | 6 mm |
| 111610620 | 6.2 mm | 31 mm | 70 mm | 6.2 mm |
| 111610650 | 6.5 mm | 31 mm | 70 mm | 6.5 mm |
| 111610680 | 6.8 mm | 34 mm | 74 mm | 6.8 mm |
| 111610700 | 7 mm | 34 mm | 74 mm | 7 mm |
| 111610750 | 7.5 mm | 34 mm | 74 mm | 7.5 mm |
| 111610800 | 8 mm | 37 mm | 79 mm | 8 mm |
| 111610850 | 8.5 mm | 37 mm | 79 mm | 8.5 mm |
| 111610900 | 9 mm | 40 mm | 84 mm | 9 mm |
| 111610950 | 9.5 mm | 40 mm | 84 mm | 9.5 mm |
| 111611000 | 10 mm | 43 mm | 89 mm | 10 mm |
| 111611050 | 10.5 mm | 43 mm | 89 mm | 10.5 mm |
| 111611100 | 11 mm | 47 mm | 95 mm | 11 mm |
| 111611150 | 11.5 mm | 47 mm | 95 mm | 11.5 mm |
| 111611200 | 12 mm | 51 mm | 102 mm | 12 mm |
| 111611250 | 12.5 mm | 51 mm | 102 mm | 12.5 mm |
| 111611300 | 13 mm | 51 mm | 102 mm | 13 mm |
