Phantom HSS-E Spiraalboor DIN 340 roestvaststaal De kobaltgelegeerde (HSS-E) RVS specialist voor het boren van diepe gaten. Deze lange boor is ideaal voor roestvaststaal en andere taaie materialen waar extra boordiepte is vereist. De 130° tophoek met kruisaanslijping maakt precies en licht boren mogelijk. Gezien de lange uitvoering (DIN 340) adviseren wij voor te centreren voor een optimaal en nauwkeurig resultaat.

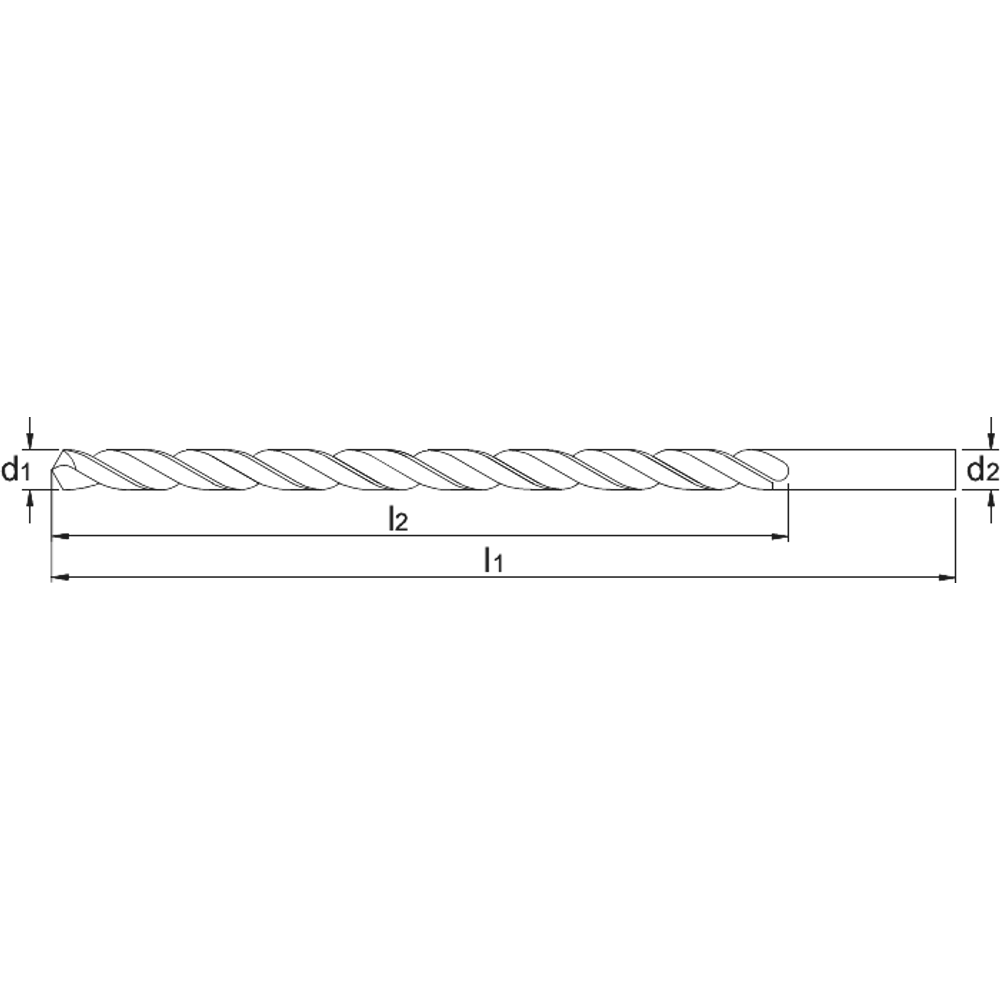

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 118200100 | 1 mm | 33 mm | 56 mm | 1 mm |
| 118200150 | 1.5 mm | 45 mm | 70 mm | 1.5 mm |
| 118200200 | 2 mm | 56 mm | 85 mm | 2 mm |
| 118200250 | 2.5 mm | 62 mm | 95 mm | 2.5 mm |
| 118200300 | 3 mm | 66 mm | 100 mm | 3 mm |
| 118200310 | 3.1 mm | 69 mm | 106 mm | 3.1 mm |
| 118200320 | 3.2 mm | 69 mm | 106 mm | 3.2 mm |
| 118200350 | 3.5 mm | 73 mm | 112 mm | 3.5 mm |
| 118200400 | 4 mm | 78 mm | 119 mm | 4 mm |
| 118200410 | 4.1 mm | 78 mm | 119 mm | 4.1 mm |
| 118200420 | 4.2 mm | 78 mm | 119 mm | 4.2 mm |
| 118200450 | 4.5 mm | 82 mm | 126 mm | 4.5 mm |
| 118200500 | 5 mm | 87 mm | 132 mm | 5 mm |
| 118200510 | 5.1 mm | 87 mm | 132 mm | 5.1 mm |
| 118200520 | 5.2 mm | 87 mm | 132 mm | 5.2 mm |
| 118200550 | 5.5 mm | 91 mm | 139 mm | 5.5 mm |
| 118200600 | 6 mm | 91 mm | 139 mm | 6 mm |
| 118200650 | 6.5 mm | 97 mm | 148 mm | 6.5 mm |
| 118200670 | 6.7 mm | 97 mm | 148 mm | 6.7 mm |
| 118200680 | 6.8 mm | 102 mm | 156 mm | 6.8 mm |
| 118200700 | 7 mm | 102 mm | 156 mm | 7 mm |
| 118200750 | 7.5 mm | 102 mm | 156 mm | 7.5 mm |
| 118200800 | 8 mm | 109 mm | 165 mm | 8 mm |
| 118200850 | 8.5 mm | 109 mm | 165 mm | 8.5 mm |
| 118200900 | 9 mm | 115 mm | 175 mm | 9 mm |
| 118200950 | 9.5 mm | 115 mm | 175 mm | 9.5 mm |
| 118201000 | 10 mm | 121 mm | 184 mm | 10 mm |
| 118201050 | 10.5 mm | 121 mm | 184 mm | 10.5 mm |
| 118201100 | 11 mm | 128 mm | 195 mm | 11 mm |
| 118201110 | 11.1 mm | 128 mm | 195 mm | 11.1 mm |
| 118201150 | 11.5 mm | 128 mm | 195 mm | 11.5 mm |
| 118201200 | 12 mm | 134 mm | 205 mm | 12 mm |
| 118201250 | 12.5 mm | 134 mm | 205 mm | 12.5 mm |
| 118201300 | 13 mm | 134 mm | 205 mm | 13 mm |
