De Phantom HSS Opboor (drielippenboor) volgens DIN 343 MK is specifiek ontworpen voor machines met een Morse Conus opname. Vervaardigd uit hoogwaardig HSS, garandeert de MK-schacht een perfect centrerende en slipvrije krachtoverbrenging, zelfs bij hoog koppel. Deze boor vergroot bestaande gaten met hoge precisie. De stabiele constructie met drie lippen herstelt effectief de vorm van onronde boringen, wat resulteert in een perfect rond en maatvast eindresultaat.

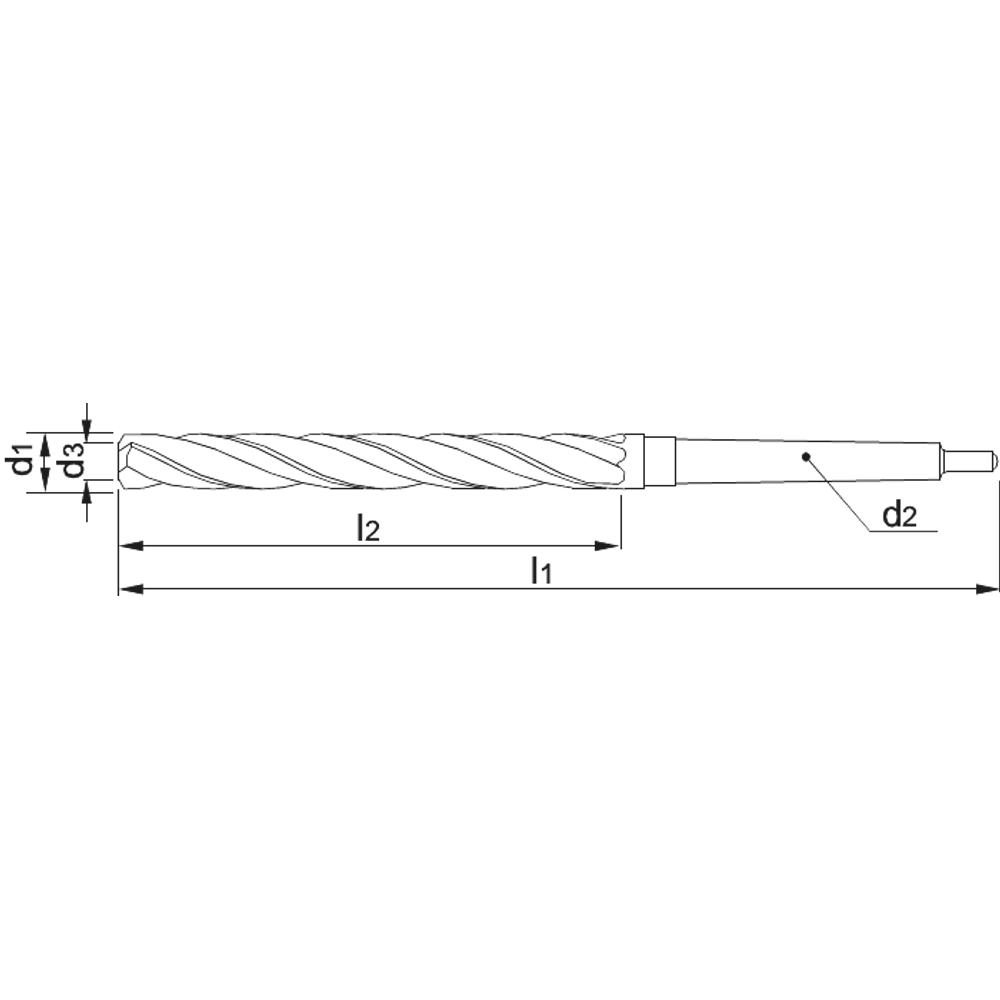

Maten en specificaties
| Artikelnummer | d1 | d3 | l2 | l1 |
|---|---|---|---|---|
| 133200780 | 7.8 mm | 5.6 mm | 75 mm | 156 mm |
| 133200800 | 8 mm | 5.6 mm | 75 mm | 156 mm |
| 133200880 | 8.8 mm | 6.3 mm | 81 mm | 162 mm |
| 133200900 | 9 mm | 6.3 mm | 81 mm | 162 mm |
| 133200980 | 9.8 mm | 7 mm | 87 mm | 168 mm |
| 133201000 | 10 mm | 7 mm | 87 mm | 168 mm |
| 133201075 | 10.75 mm | 7.7 mm | 94 mm | 175 mm |
| 133201100 | 11 mm | 7.7 mm | 94 mm | 175 mm |
| 133201175 | 11.75 mm | 8.4 mm | 101 mm | 182 mm |
| 133201200 | 12 mm | 8.4 mm | 101 mm | 182 mm |
| 133201275 | 12.75 mm | 8.4 mm | 101 mm | 182 mm |
| 133201300 | 13 mm | 9.1 mm | 101 mm | 182 mm |
| 133201375 | 13.75 mm | 9.8 mm | 108 mm | 189 mm |
| 133201400 | 14 mm | 9.8 mm | 108 mm | 189 mm |
| 133201475 | 14.75 mm | 10.5 mm | 114 mm | 212 mm |
| 133201500 | 15 mm | 10.5 mm | 114 mm | 212 mm |
| 133201575 | 15.75 mm | 11.2 mm | 120 mm | 218 mm |
| 133201600 | 16 mm | 11.2 mm | 120 mm | 218 mm |
| 133201675 | 16.75 mm | 11.9 mm | 125 mm | 223 mm |
| 133201700 | 17 mm | 11.9 mm | 125 mm | 223 mm |
| 133201775 | 17.75 mm | 12.6 mm | 130 mm | 228 mm |
| 133201800 | 18 mm | 12.6 mm | 130 mm | 228 mm |
| 133201870 | 18.7 mm | 13.3 mm | 135 mm | 233 mm |
| 133201900 | 19 mm | 13.3 mm | 135 mm | 233 mm |
| 133201970 | 19.7 mm | 14 mm | 140 mm | 238 mm |
| 133202000 | 20 mm | 14 mm | 140 mm | 238 mm |
| 133202070 | 20.7 mm | 14.6 mm | 145 mm | 243 mm |
| 133202100 | 21 mm | 14.6 mm | 145 mm | 243 mm |
| 133202170 | 21.7 mm | 15.3 mm | 150 mm | 248 mm |
| 133202200 | 22 mm | 15.3 mm | 150 mm | 248 mm |
| 133202270 | 22.7 mm | 16 mm | 155 mm | 253 mm |
| 133202300 | 23 mm | 16 mm | 155 mm | 253 mm |
| 133202370 | 23.7 mm | 16.6 mm | 160 mm | 281 mm |
| 133202400 | 24 mm | 16.6 mm | 160 mm | 281 mm |
| 133202470 | 24.7 mm | 16.6 mm | 160 mm | 281 mm |
| 133202500 | 25 mm | 17.3 mm | 160 mm | 281 mm |
| 133202570 | 25.7 mm | 18 mm | 165 mm | 286 mm |
| 133202600 | 26 mm | 18 mm | 165 mm | 286 mm |
| 133202670 | 26.7 mm | 18.6 mm | 170 mm | 291 mm |
| 133202700 | 27 mm | 18.6 mm | 170 mm | 291 mm |
| 133202770 | 27.7 mm | 18.6 mm | 170 mm | 291 mm |
| 133202800 | 28 mm | 19.3 mm | 170 mm | 291 mm |
| 133202870 | 28.7 mm | 20 mm | 175 mm | 296 mm |
| 133202900 | 29 mm | 20 mm | 175 mm | 296 mm |
| 133202970 | 29.7 mm | 20 mm | 175 mm | 296 mm |
| 133203000 | 30 mm | 20.5 mm | 175 mm | 296 mm |
| 133203060 | 30.6 mm | 21 mm | 180 mm | 301 mm |
| 133203100 | 31 mm | 21 mm | 180 mm | 301 mm |
| 133203160 | 31.6 mm | 22 mm | 185 mm | 334 mm |
| 133203200 | 32 mm | 22 mm | 185 mm | 334 mm |
| 133203260 | 32.6 mm | 22 mm | 185 mm | 334 mm |
| 133203300 | 33 mm | 23 mm | 185 mm | 334 mm |
| 133203360 | 33.6 mm | 24 mm | 190 mm | 339 mm |
| 133203400 | 34 mm | 24 mm | 190 mm | 339 mm |
| 133203460 | 34.6 mm | 24 mm | 190 mm | 339 mm |
| 133203500 | 35 mm | 25 mm | 190 mm | 339 mm |
| 133203560 | 35.6 mm | 25.5 mm | 195 mm | 344 mm |
| 133203600 | 36 mm | 25.5 mm | 195 mm | 344 mm |
| 133203660 | 36.6 mm | 25.5 mm | 195 mm | 344 mm |
| 133203700 | 37 mm | 26 mm | 195 mm | 344 mm |
| 133203760 | 37.6 mm | 26.5 mm | 200 mm | 349 mm |
| 133203800 | 38 mm | 26.5 mm | 200 mm | 349 mm |
| 133203860 | 38.6 mm | 26.5 mm | 200 mm | 349 mm |
| 133203900 | 39 mm | 27 mm | 200 mm | 349 mm |
| 133203960 | 39.6 mm | 27 mm | 200 mm | 349 mm |
| 133204000 | 40 mm | 28 mm | 200 mm | 349 mm |
| 133204060 | 40.6 mm | 28.5 mm | 205 mm | 354 mm |
| 133204100 | 41 mm | 28.5 mm | 205 mm | 354 mm |
| 133204160 | 41.6 mm | 28.5 mm | 205 mm | 354 mm |
| 133204200 | 42 mm | 29 mm | 205 mm | 354 mm |
| 133204260 | 42.6 mm | 30 mm | 210 mm | 359 mm |
| 133204300 | 43 mm | 30 mm | 210 mm | 359 mm |
| 133204360 | 43.6 mm | 30 mm | 210 mm | 359 mm |
| 133204400 | 44 mm | 30.5 mm | 210 mm | 359 mm |
| 133204460 | 44.6 mm | 30.5 mm | 210 mm | 359 mm |
| 133204500 | 45 mm | 31 mm | 210 mm | 359 mm |
| 133204560 | 45.6 mm | 32 mm | 215 mm | 364 mm |
| 133204600 | 46 mm | 32 mm | 215 mm | 364 mm |
| 133204660 | 46.6 mm | 32 mm | 215 mm | 364 mm |
| 133204700 | 47 mm | 32.5 mm | 215 mm | 364 mm |
| 133204760 | 47.6 mm | 33 mm | 220 mm | 369 mm |
| 133204800 | 48 mm | 33 mm | 220 mm | 369 mm |
| 133204860 | 48.6 mm | 33 mm | 220 mm | 369 mm |
| 133204900 | 49 mm | 34 mm | 220 mm | 369 mm |
| 133204960 | 49.6 mm | 34 mm | 220 mm | 369 mm |
| 133205000 | 50 mm | 34.5 mm | 220 mm | 369 mm |
