De Phantom HSS Spiraalboor DIN 340 Type TS is de specialist voor diepe gaten. De parabolische spaankamer (Type TS) zorgt voor een dusdanig optimale spaanafvoer dat er minder vaak gelost hoeft te worden. De boorpunt heeft tot 3 mm een kruisaanslijping en vanaf 3 mm een speciale S-aanslijping. Vanwege de lengte adviseren wij voor te centreren. De genitreerde geleidingen geven de boor extra slijtageweerstand.

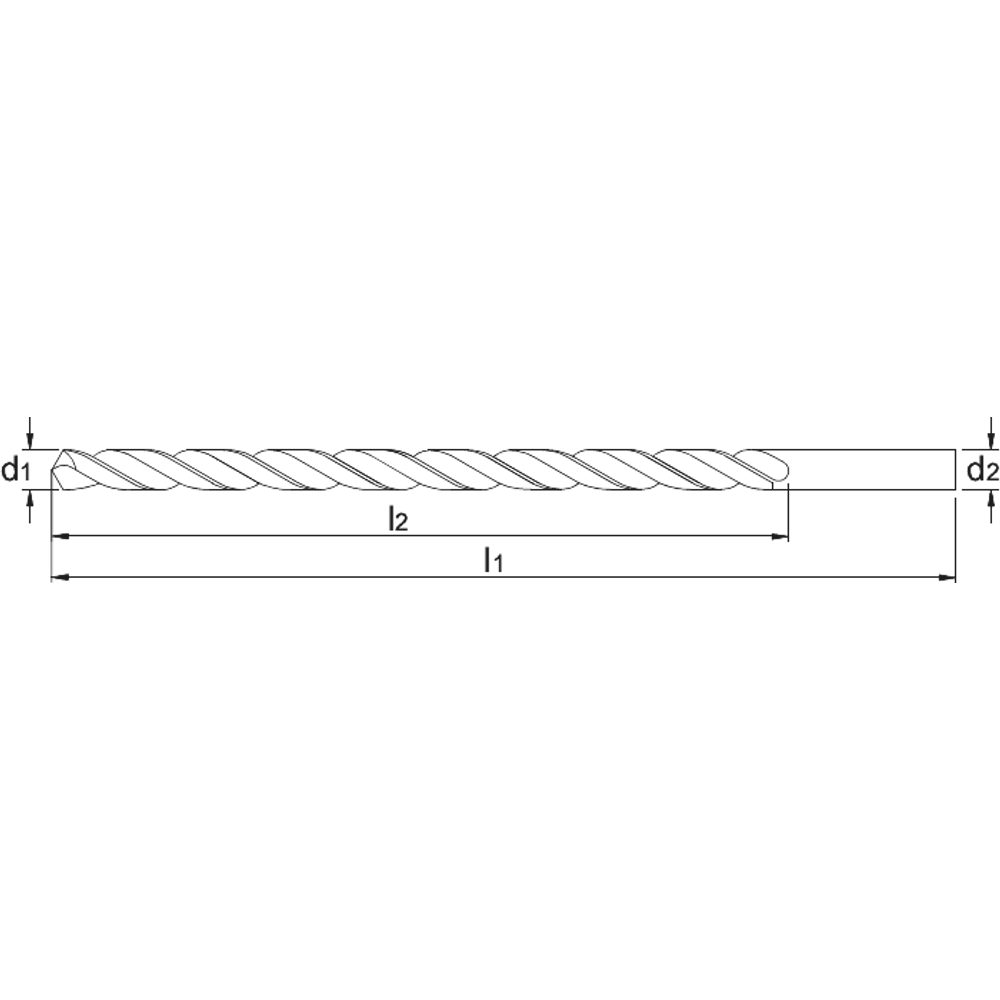

Maten en specificaties
| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 118600100 | 1 mm | 33 mm | 56 mm | 1 mm |
| 118600150 | 1.5 mm | 45 mm | 70 mm | 1.5 mm |
| 118600200 | 2 mm | 56 mm | 85 mm | 2 mm |
| 118600210 | 2.1 mm | 56 mm | 85 mm | 2.1 mm |
| 118600220 | 2.2 mm | 59 mm | 90 mm | 2.2 mm |
| 118600230 | 2.3 mm | 59 mm | 90 mm | 2.3 mm |
| 118600240 | 2.4 mm | 62 mm | 95 mm | 2.4 mm |
| 118600250 | 2.5 mm | 62 mm | 95 mm | 2.5 mm |
| 118600260 | 2.6 mm | 62 mm | 95 mm | 2.6 mm |
| 118600270 | 2.7 mm | 66 mm | 100 mm | 2.7 mm |
| 118600280 | 2.8 mm | 66 mm | 100 mm | 2.8 mm |
| 118600290 | 2.9 mm | 66 mm | 100 mm | 2.9 mm |
| 118600300 | 3 mm | 66 mm | 100 mm | 3 mm |
| 118600310 | 3.1 mm | 69 mm | 106 mm | 3.1 mm |
| 118600320 | 3.2 mm | 69 mm | 106 mm | 3.2 mm |
| 118600330 | 3.3 mm | 69 mm | 106 mm | 3.3 mm |
| 118600340 | 3.4 mm | 73 mm | 112 mm | 3.4 mm |
| 118600350 | 3.5 mm | 73 mm | 112 mm | 3.5 mm |
| 118600360 | 3.6 mm | 73 mm | 112 mm | 3.6 mm |
| 118600370 | 3.7 mm | 73 mm | 112 mm | 3.7 mm |
| 118600380 | 3.8 mm | 78 mm | 119 mm | 3.8 mm |
| 118600390 | 3.9 mm | 78 mm | 119 mm | 3.9 mm |
| 118600400 | 4 mm | 78 mm | 119 mm | 4 mm |
| 118600410 | 4.1 mm | 78 mm | 119 mm | 4.1 mm |
| 118600420 | 4.2 mm | 78 mm | 119 mm | 4.2 mm |
| 118600430 | 4.3 mm | 82 mm | 126 mm | 4.3 mm |
| 118600440 | 4.4 mm | 82 mm | 126 mm | 4.4 mm |
| 118600450 | 4.5 mm | 82 mm | 126 mm | 4.5 mm |
| 118600460 | 4.6 mm | 82 mm | 126 mm | 4.6 mm |
| 118600470 | 4.7 mm | 82 mm | 126 mm | 4.7 mm |
| 118600480 | 4.8 mm | 87 mm | 132 mm | 4.8 mm |
| 118600490 | 4.9 mm | 87 mm | 132 mm | 4.9 mm |
| 118600500 | 5 mm | 87 mm | 132 mm | 5 mm |
| 118600510 | 5.1 mm | 87 mm | 132 mm | 5.1 mm |
| 118600520 | 5.2 mm | 87 mm | 132 mm | 5.2 mm |
| 118600530 | 5.3 mm | 87 mm | 132 mm | 5.3 mm |
| 118600540 | 5.4 mm | 91 mm | 139 mm | 5.4 mm |
| 118600550 | 5.5 mm | 91 mm | 139 mm | 5.5 mm |
| 118600560 | 5.6 mm | 91 mm | 139 mm | 5.6 mm |
| 118600570 | 5.7 mm | 91 mm | 139 mm | 5.7 mm |
| 118600580 | 5.8 mm | 91 mm | 139 mm | 5.8 mm |
| 118600590 | 5.9 mm | 91 mm | 139 mm | 5.9 mm |
| 118600600 | 6 mm | 91 mm | 139 mm | 6 mm |
| 118600610 | 6.1 mm | 97 mm | 148 mm | 6.1 mm |
| 118600620 | 6.2 mm | 97 mm | 148 mm | 6.2 mm |
| 118600630 | 6.3 mm | 97 mm | 148 mm | 6.3 mm |
| 118600640 | 6.4 mm | 97 mm | 148 mm | 6.4 mm |
| 118600650 | 6.5 mm | 97 mm | 148 mm | 6.5 mm |
| 118600660 | 6.6 mm | 97 mm | 148 mm | 6.6 mm |
| 118600670 | 6.7 mm | 97 mm | 148 mm | 6.7 mm |
| 118600680 | 6.8 mm | 102 mm | 156 mm | 6.8 mm |
| 118600690 | 6.9 mm | 102 mm | 156 mm | 6.9 mm |
| 118600700 | 7 mm | 102 mm | 156 mm | 7 mm |
| 118600710 | 7.1 mm | 102 mm | 156 mm | 7.1 mm |
| 118600720 | 7.2 mm | 102 mm | 156 mm | 7.2 mm |
| 118600730 | 7.3 mm | 102 mm | 156 mm | 7.3 mm |
| 118600740 | 7.4 mm | 102 mm | 156 mm | 7.4 mm |
| 118600750 | 7.5 mm | 102 mm | 156 mm | 7.5 mm |
| 118600760 | 7.6 mm | 109 mm | 165 mm | 7.6 mm |
| 118600770 | 7.7 mm | 109 mm | 165 mm | 7.7 mm |
| 118600780 | 7.8 mm | 109 mm | 165 mm | 7.8 mm |
| 118600790 | 7.9 mm | 109 mm | 165 mm | 7.9 mm |
| 118600800 | 8 mm | 109 mm | 165 mm | 8 mm |
| 118600850 | 8.5 mm | 109 mm | 165 mm | 8.5 mm |
| 118600870 | 8.7 mm | 115 mm | 175 mm | 8.7 mm |
| 118600900 | 9 mm | 115 mm | 175 mm | 9 mm |
| 118600950 | 9.5 mm | 115 mm | 175 mm | 9.5 mm |
| 118601000 | 10 mm | 121 mm | 184 mm | 10 mm |
| 118601020 | 10.2 mm | 121 mm | 184 mm | 10.2 mm |
| 118601050 | 10.5 mm | 121 mm | 184 mm | 10.5 mm |
| 118601100 | 11 mm | 128 mm | 195 mm | 11 mm |
| 118601150 | 11.5 mm | 128 mm | 195 mm | 11.5 mm |
| 118601200 | 12 mm | 134 mm | 205 mm | 12 mm |
| 118601250 | 12.5 mm | 134 mm | 205 mm | 12.5 mm |
| 118601300 | 13 mm | 134 mm | 205 mm | 13 mm |
| 118601400 | 14 mm | 140 mm | 214 mm | 14 mm |
| 118601500 | 15 mm | 144 mm | 220 mm | 15 mm |
| 118601600 | 16 mm | 149 mm | 227 mm | 16 mm |
