Filter naar uw Perfecte Variant

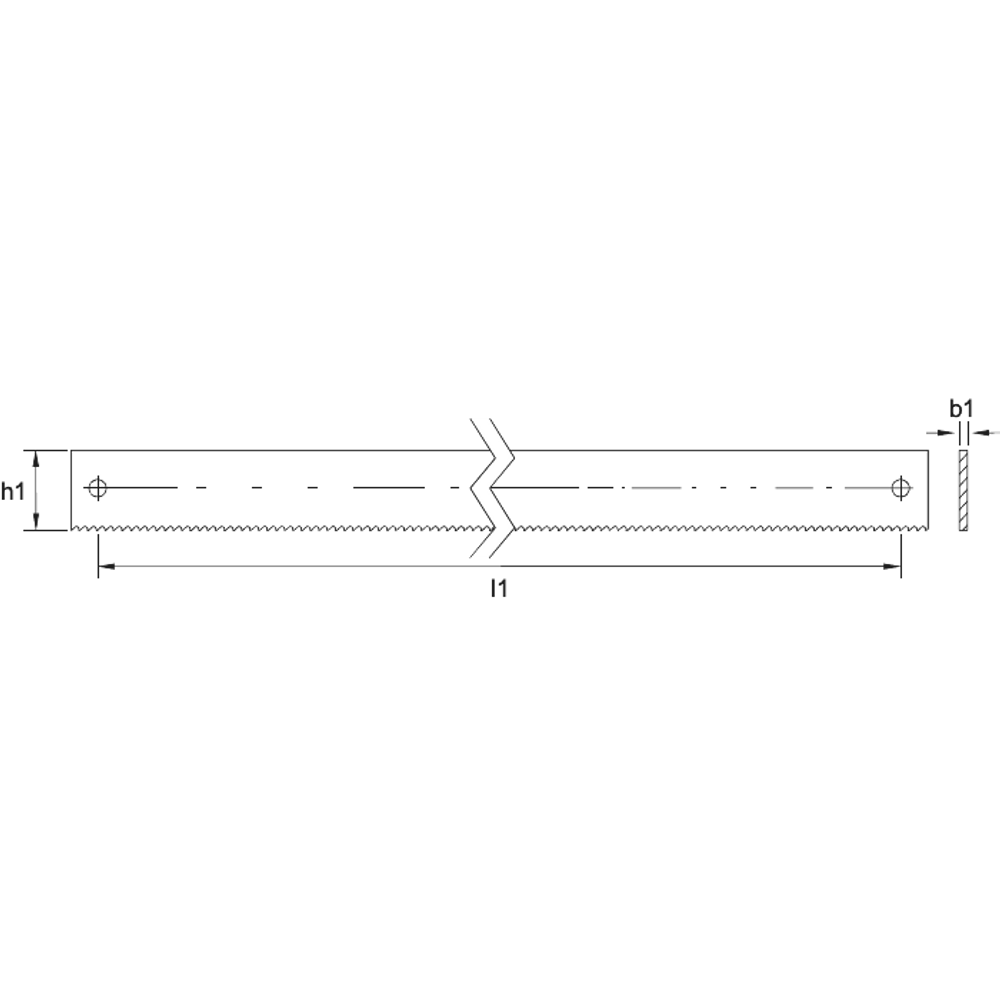

Maten en specificaties
| Artikelnummer | l1 | h1 | b1 | d1 | TPI |
|---|---|---|---|---|---|
| 661103036 | 300 mm | 25 mm | 1.25 mm | 8.5 mm | 10 TPI |
| 661103037 | 300 mm | 25 mm | 1.25 mm | 8.5 mm | 14 TPI |
| 661103054 | 300 mm | 32 mm | 1.6 mm | 8.5 mm | 6 TPI |
| 661103055 | 300 mm | 32 mm | 1.6 mm | 8.5 mm | 8 TPI |
| 661103056 | 300 mm | 32 mm | 1.6 mm | 8.5 mm | 10 TPI |
| 661103514 | 350 mm | 25 mm | 1.25 mm | 8.5 mm | 6 TPI |
| 661103515 | 350 mm | 25 mm | 1.25 mm | 8.5 mm | 8 TPI |
| 661103516 | 350 mm | 25 mm | 1.25 mm | 8.5 mm | 10 TPI |
| 661103517 | 350 mm | 25 mm | 1.25 mm | 8.5 mm | 14 TPI |
| 661103534 | 350 mm | 32 mm | 1.6 mm | 8.5 mm | 6 TPI |
| 661103535 | 350 mm | 32 mm | 1.6 mm | 8.5 mm | 8 TPI |
| 661103536 | 350 mm | 32 mm | 1.6 mm | 8.5 mm | 10 TPI |
| 661103537 | 350 mm | 32 mm | 1.6 mm | 8.5 mm | 14 TPI |
| 661103553 | 350 mm | 38 mm | 2 mm | 10.5 mm | 4 TPI |
| 661103554 | 350 mm | 38 mm | 2 mm | 10.5 mm | 6 TPI |
| 661103555 | 350 mm | 38 mm | 2 mm | 10.5 mm | 8 TPI |
| 661103556 | 350 mm | 38 mm | 2 mm | 10.5 mm | 10 TPI |
| 661103557 | 350 mm | 38 mm | 2 mm | 10.5 mm | 14 TPI |
| 661104034 | 400 mm | 25 mm | 1.25 mm | 8.5 mm | 6 TPI |
| 661104035 | 400 mm | 25 mm | 1.25 mm | 8.5 mm | 8 TPI |
| 661104036 | 400 mm | 25 mm | 1.25 mm | 8.5 mm | 10 TPI |
| 661104037 | 400 mm | 25 mm | 1.25 mm | 8.5 mm | 14 TPI |
| 661104054 | 400 mm | 32 mm | 1.6 mm | 8.5 mm | 6 TPI |
| 661104055 | 400 mm | 32 mm | 1.6 mm | 8.5 mm | 8 TPI |
| 661104056 | 400 mm | 32 mm | 1.6 mm | 8.5 mm | 10 TPI |
| 661104057 | 400 mm | 32 mm | 1.6 mm | 8.5 mm | 14 TPI |
| 661104073 | 400 mm | 38 mm | 2 mm | 8.5 mm | 4 TPI |
| 661104074 | 400 mm | 38 mm | 2 mm | 8.5 mm | 6 TPI |
| 661104075 | 400 mm | 38 mm | 2 mm | 8.5 mm | 8 TPI |
| 661104076 | 400 mm | 38 mm | 2 mm | 8.5 mm | 10 TPI |
| 661104077 | 400 mm | 38 mm | 2 mm | 8.5 mm | 14 TPI |
| 661104094 | 400 mm | 38 mm | 2 mm | 10.5 mm | 6 TPI |
| 661104233 | 425 mm | 32 mm | 1.6 mm | 8.5 mm | 4 TPI |
| 661104234 | 425 mm | 32 mm | 1.6 mm | 8.5 mm | 6 TPI |
| 661104504 | 450 mm | 30 mm | 1.5 mm | 8.5 mm | 6 TPI |
| 661104506 | 450 mm | 30 mm | 1.5 mm | 8.5 mm | 10 TPI |
| 661104513 | 450 mm | 32 mm | 1.6 mm | 8.5 mm | 4 TPI |
| 661104514 | 450 mm | 32 mm | 1.6 mm | 10.5 mm | 6 TPI |
| 661104515 | 450 mm | 32 mm | 1.6 mm | 10.5 mm | 8 TPI |
| 661104516 | 450 mm | 32 mm | 1.6 mm | 10.5 mm | 10 TPI |
| 661104524 | 450 mm | 32 mm | 1.6 mm | 8.5 mm | 6 TPI |
| 661104525 | 450 mm | 32 mm | 1.6 mm | 8.5 mm | 8 TPI |
| 661104526 | 450 mm | 32 mm | 1.6 mm | 8.5 mm | 10 TPI |
| 661104553 | 450 mm | 38 mm | 2 mm | 10.5 mm | 4 TPI |
| 661104554 | 450 mm | 38 mm | 2 mm | 10.5 mm | 6 TPI |
| 661104555 | 450 mm | 38 mm | 2 mm | 10.5 mm | 8 TPI |
| 661104556 | 450 mm | 38 mm | 2 mm | 10.5 mm | 10 TPI |
| 661105005 | 500 mm | 32 mm | 1.6 mm | 8.5 mm | 8 TPI |
| 661105013 | 500 mm | 38 mm | 2 mm | 10.5 mm | 4 TPI |
| 661105014 | 500 mm | 38 mm | 2 mm | 10.5 mm | 6 TPI |
| 661105015 | 500 mm | 38 mm | 2 mm | 10.5 mm | 8 TPI |
| 661105016 | 500 mm | 38 mm | 2 mm | 10.5 mm | 10 TPI |
| 661105214 | 525 mm | 40 mm | 2 mm | 10.5 mm | 6 TPI |
| 661105513 | 550 mm | 45 mm | 2.25 mm | 10.5 mm | 4 TPI |
| 661105514 | 550 mm | 45 mm | 2.25 mm | 10.5 mm | 6 TPI |
| 661105515 | 550 mm | 45 mm | 2.25 mm | 13 mm | 8 TPI |
| 661105516 | 550 mm | 45 mm | 2.25 mm | 13 mm | 10 TPI |
| 661106003 | 600 mm | 50 mm | 2.5 mm | 10.5 mm | 4 TPI |
| 661106004 | 600 mm | 50 mm | 2.5 mm | 10.5 mm | 6 TPI |
| 661106013 | 600 mm | 50 mm | 2.5 mm | 13 mm | 4 TPI |
| 661106014 | 600 mm | 50 mm | 2.5 mm | 13 mm | 6 TPI |
| 661106015 | 600 mm | 50 mm | 2.5 mm | 13 mm | 8 TPI |
| 661106016 | 600 mm | 50 mm | 2.5 mm | 13 mm | 10 TPI |
| 661106513 | 650 mm | 50 mm | 2.5 mm | 13 mm | 4 TPI |
| 661106514 | 650 mm | 50 mm | 2.5 mm | 13 mm | 6 TPI |
| 661106515 | 650 mm | 50 mm | 2.5 mm | 13 mm | 8 TPI |
| 661106516 | 650 mm | 50 mm | 2.5 mm | 13 mm | 10 TPI |
| 661107014 | 700 mm | 50 mm | 2.5 mm | 13 mm | 6 TPI |
