De Phantom UNI volhardmetaal Spiraalboor DIN 6537-K 3xD TiAlN is een hoogwaardig verspaningsgereedschap voor de professionele metaalbewerker. Deze volhardmetaalboor met een slijtvaste TiAlN coating garandeert superieure prestaties en een aanzienlijk verlengde standtijd bij diverse boorbewerkingen. De uitvoering met een boordiepte van 3xD staat garant voor een korte en stabiele constructie, resulterend in nauwkeurige resultaten. De cilindrische schacht conform DIN 6535-HA verzekert een betrouwbare en optimale opspanning in gangbare gereedschapshouders. De tophoek van 140° maakt deze spiraalboor universeel inzetbaar voor een breed spectrum aan materialen.
Maten en specificaties

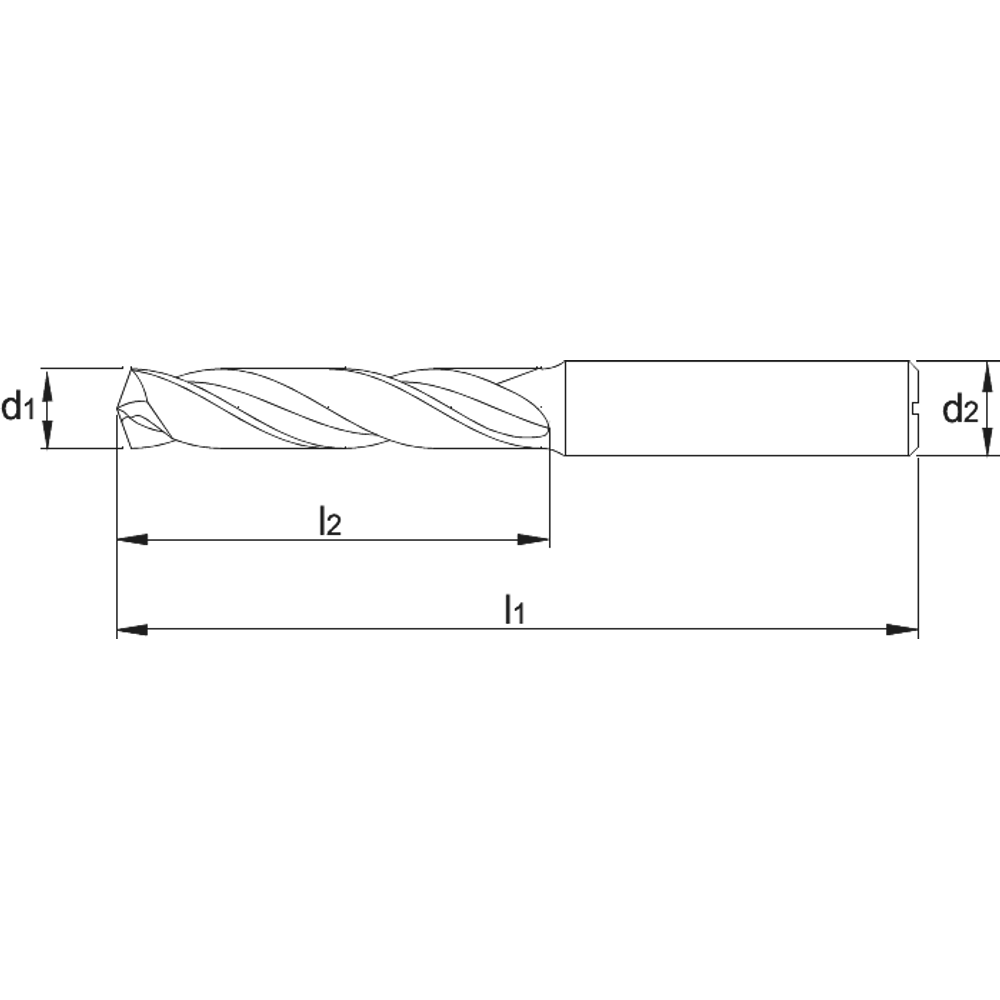

| Artikelnummer | d1 | l2 | l1 | d2 |
|---|---|---|---|---|
| 112500100 | 1 mm | 7 mm | 45 mm | 3 mm |
| 112500110 | 1.1 mm | 7 mm | 45 mm | 3 mm |
| 112500120 | 1.2 mm | 7 mm | 45 mm | 3 mm |
| 112500130 | 1.3 mm | 7 mm | 45 mm | 3 mm |
| 112500140 | 1.4 mm | 7 mm | 45 mm | 3 mm |
| 112500150 | 1.5 mm | 14 mm | 55 mm | 3 mm |
| 112500160 | 1.6 mm | 14 mm | 55 mm | 3 mm |
| 112500170 | 1.7 mm | 14 mm | 55 mm | 3 mm |
| 112500180 | 1.8 mm | 14 mm | 55 mm | 3 mm |
| 112500190 | 1.9 mm | 14 mm | 55 mm | 3 mm |
| 112500200 | 2 mm | 20 mm | 55 mm | 4 mm |
| 112500210 | 2.1 mm | 20 mm | 55 mm | 4 mm |
| 112500220 | 2.2 mm | 20 mm | 55 mm | 4 mm |
| 112500230 | 2.3 mm | 20 mm | 55 mm | 4 mm |
| 112500240 | 2.4 mm | 20 mm | 55 mm | 4 mm |
| 112500250 | 2.5 mm | 20 mm | 55 mm | 4 mm |
| 112500260 | 2.6 mm | 20 mm | 55 mm | 4 mm |
| 112500270 | 2.7 mm | 20 mm | 55 mm | 4 mm |
| 112500280 | 2.8 mm | 20 mm | 55 mm | 4 mm |
| 112500290 | 2.9 mm | 20 mm | 55 mm | 4 mm |
| 112500300 | 3 mm | 20 mm | 62 mm | 6 mm |
| 112500310 | 3.1 mm | 20 mm | 62 mm | 6 mm |
| 112500320 | 3.2 mm | 20 mm | 62 mm | 6 mm |
| 112500330 | 3.3 mm | 20 mm | 62 mm | 6 mm |
| 112500340 | 3.4 mm | 20 mm | 62 mm | 6 mm |
| 112500350 | 3.5 mm | 20 mm | 62 mm | 6 mm |
| 112500360 | 3.6 mm | 20 mm | 62 mm | 6 mm |
| 112500370 | 3.7 mm | 20 mm | 62 mm | 6 mm |
| 112500380 | 3.8 mm | 24 mm | 66 mm | 6 mm |
| 112500390 | 3.9 mm | 24 mm | 66 mm | 6 mm |
| 112500400 | 4 mm | 24 mm | 66 mm | 6 mm |
| 112500410 | 4.1 mm | 24 mm | 66 mm | 6 mm |
| 112500420 | 4.2 mm | 24 mm | 66 mm | 6 mm |
| 112500430 | 4.3 mm | 24 mm | 66 mm | 6 mm |
| 112500440 | 4.4 mm | 24 mm | 66 mm | 6 mm |
| 112500450 | 4.5 mm | 24 mm | 66 mm | 6 mm |
| 112500460 | 4.6 mm | 24 mm | 66 mm | 6 mm |
| 112500470 | 4.7 mm | 24 mm | 66 mm | 6 mm |
| 112500480 | 4.8 mm | 28 mm | 66 mm | 6 mm |
| 112500490 | 4.9 mm | 28 mm | 66 mm | 6 mm |
| 112500500 | 5 mm | 28 mm | 66 mm | 6 mm |
| 112500510 | 5.1 mm | 28 mm | 66 mm | 6 mm |
| 112500520 | 5.2 mm | 28 mm | 66 mm | 6 mm |
| 112500530 | 5.3 mm | 28 mm | 66 mm | 6 mm |
| 112500540 | 5.4 mm | 28 mm | 66 mm | 6 mm |
| 112500550 | 5.5 mm | 28 mm | 66 mm | 6 mm |
| 112500560 | 5.6 mm | 28 mm | 66 mm | 6 mm |
| 112500570 | 5.7 mm | 28 mm | 66 mm | 6 mm |
| 112500580 | 5.8 mm | 28 mm | 66 mm | 6 mm |
| 112500590 | 5.9 mm | 28 mm | 66 mm | 6 mm |
| 112500600 | 6 mm | 28 mm | 66 mm | 6 mm |
| 112500610 | 6.1 mm | 34 mm | 79 mm | 8 mm |
| 112500620 | 6.2 mm | 34 mm | 79 mm | 8 mm |
| 112500630 | 6.3 mm | 34 mm | 79 mm | 8 mm |
| 112500640 | 6.4 mm | 34 mm | 79 mm | 8 mm |
| 112500650 | 6.5 mm | 34 mm | 79 mm | 8 mm |
| 112500660 | 6.6 mm | 34 mm | 79 mm | 8 mm |
| 112500670 | 6.7 mm | 34 mm | 79 mm | 8 mm |
| 112500680 | 6.8 mm | 34 mm | 79 mm | 8 mm |
| 112500690 | 6.9 mm | 34 mm | 79 mm | 8 mm |
| 112500700 | 7 mm | 34 mm | 79 mm | 8 mm |
| 112500720 | 7.2 mm | 41 mm | 79 mm | 8 mm |
| 112500750 | 7.5 mm | 41 mm | 79 mm | 8 mm |
| 112500800 | 8 mm | 41 mm | 79 mm | 8 mm |
| 112500850 | 8.5 mm | 47 mm | 89 mm | 10 mm |
| 112500860 | 8.6 mm | 47 mm | 89 mm | 10 mm |
| 112500880 | 8.8 mm | 47 mm | 89 mm | 10 mm |
| 112500900 | 9 mm | 47 mm | 89 mm | 10 mm |
| 112500950 | 9.5 mm | 47 mm | 89 mm | 10 mm |
| 112501000 | 10 mm | 47 mm | 89 mm | 10 mm |
| 112501020 | 10.2 mm | 55 mm | 102 mm | 12 mm |
| 112501030 | 10.3 mm | 55 mm | 102 mm | 12 mm |
| 112501050 | 10.5 mm | 55 mm | 102 mm | 12 mm |
| 112501100 | 11 mm | 55 mm | 102 mm | 12 mm |
| 112501150 | 11.5 mm | 55 mm | 102 mm | 12 mm |
| 112501200 | 12 mm | 55 mm | 102 mm | 12 mm |
| 112501250 | 12.5 mm | 60 mm | 107 mm | 14 mm |
| 112501300 | 13 mm | 60 mm | 107 mm | 14 mm |
| 112501350 | 13.5 mm | 60 mm | 107 mm | 14 mm |
| 112501400 | 14 mm | 60 mm | 107 mm | 14 mm |
| 112501450 | 14.5 mm | 65 mm | 115 mm | 16 mm |
| 112501500 | 15 mm | 65 mm | 115 mm | 16 mm |
| 112501600 | 16 mm | 65 mm | 115 mm | 16 mm |
