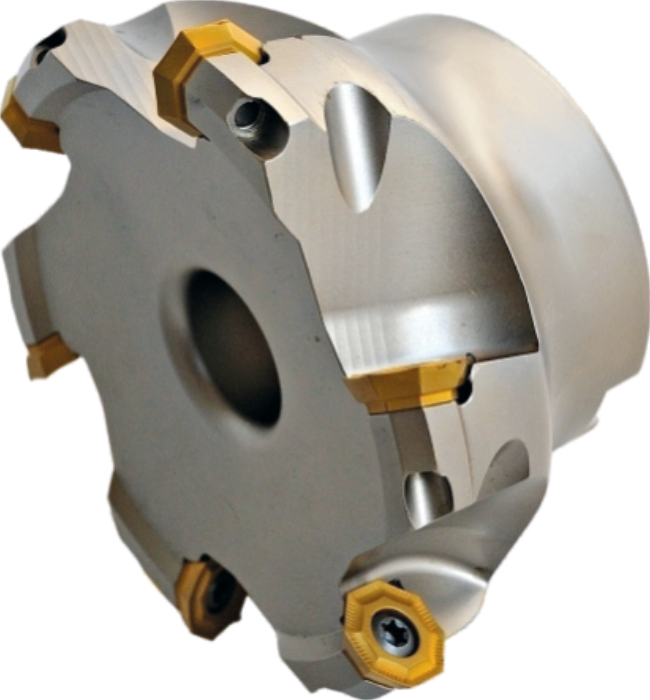

met schroefsysteem, voor wisselplaten OFEX 05T305.LET OP! Dit product is uitlopend.

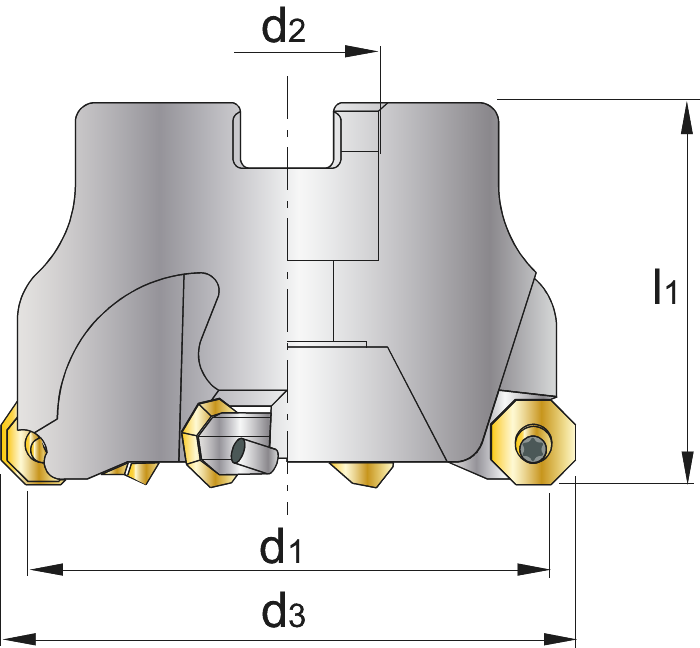

Maten en specificaties
| Artikelnummer | d1 | l1 | d2 | d3 | z |
|---|---|---|---|---|---|
| 761150040 | 40 mm | 40 mm | 16 mm | 47 mm | 3 |
| 761150050 | 50 mm | 40 mm | 22 mm | 57 mm | 4 |
| 761150063 | 63 mm | 40 mm | 22 mm | 70 mm | 5 |
| 761150080 | 80 mm | 50 mm | 27 mm | 87 mm | 6 |
| 761150630 | 63 mm | 40 mm | 22 mm | 72 mm | 5 |
| 761150800 | 80 mm | 50 mm | 27 mm | 89 mm | 6 |
| 761151000 | 100 mm | 50 mm | 32 mm | 109 mm | 7 |
