~DIN 212, cilindrische schacht, spiraalgroeven

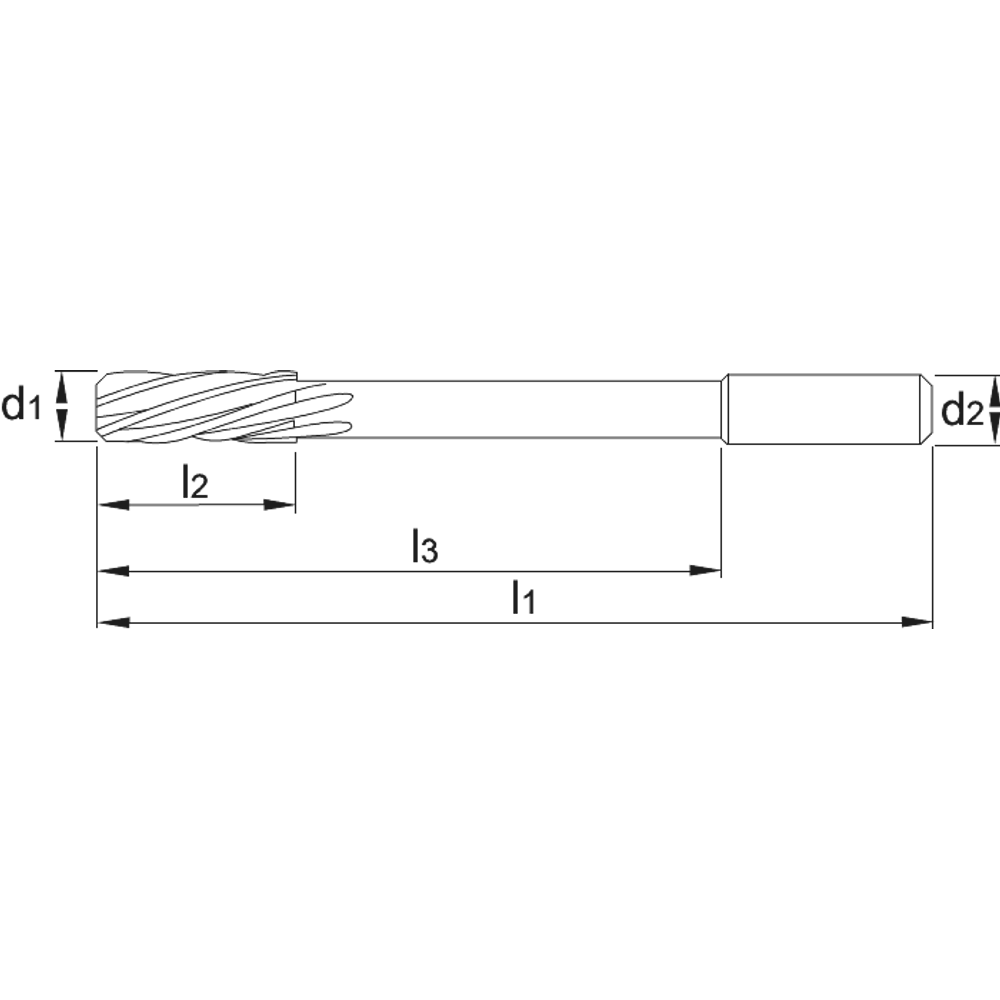

Maten en specificaties
| Artikelnummer | d1 | l2 | l3 | l1 | d2 |
|---|---|---|---|---|---|
| 513300100 | 1 mm | 8 mm | 22 mm | 40 mm | 1 mm |
| 513300150 | 1.5 mm | 8 mm | 24 mm | 40 mm | 1.5 mm |
| 513300200 | 2 mm | 11 mm | 31 mm | 49 mm | 2 mm |
| 513300250 | 2.5 mm | 14 mm | 38 mm | 57 mm | 2.5 mm |
| 513300300 | 3 mm | 15 mm | 38 mm | 61 mm | 3 mm |
| 513300400 | 4 mm | 19 mm | 51 mm | 75 mm | 4 mm |
| 513300500 | 5 mm | 23 mm | 60 mm | 86 mm | 5 mm |
| 513300600 | 6 mm | 26 mm | 73 mm | 93 mm | 6 mm |
| 513300800 | 8 mm | 33 mm | 86 mm | 117 mm | 8 mm |
| 513301000 | 10 mm | 38 mm | 99 mm | 133 mm | 10 mm |
| 513301200 | 12 mm | 44 mm | 106 mm | 151 mm | 12 mm |
| 513301400 | 14 mm | 47 mm | 110 mm | 160 mm | 14 mm |
