Phantom Volhardmetaal Precisie Machineruimer ~DIN 212 vorm B/D x 0,01

~DIN 212, cilindrische schacht, spiraalgroeven, tolerantie t/m 3,00 mm = -0/+0,003, t/m 6,00 mm = -0/+0,004, t/m 12,20 = -0/+0,005 mm

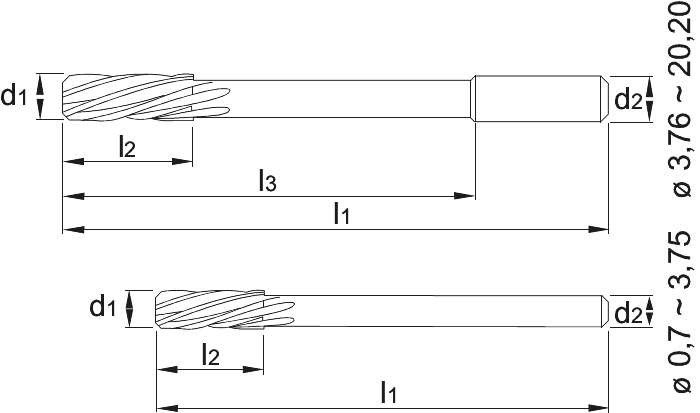

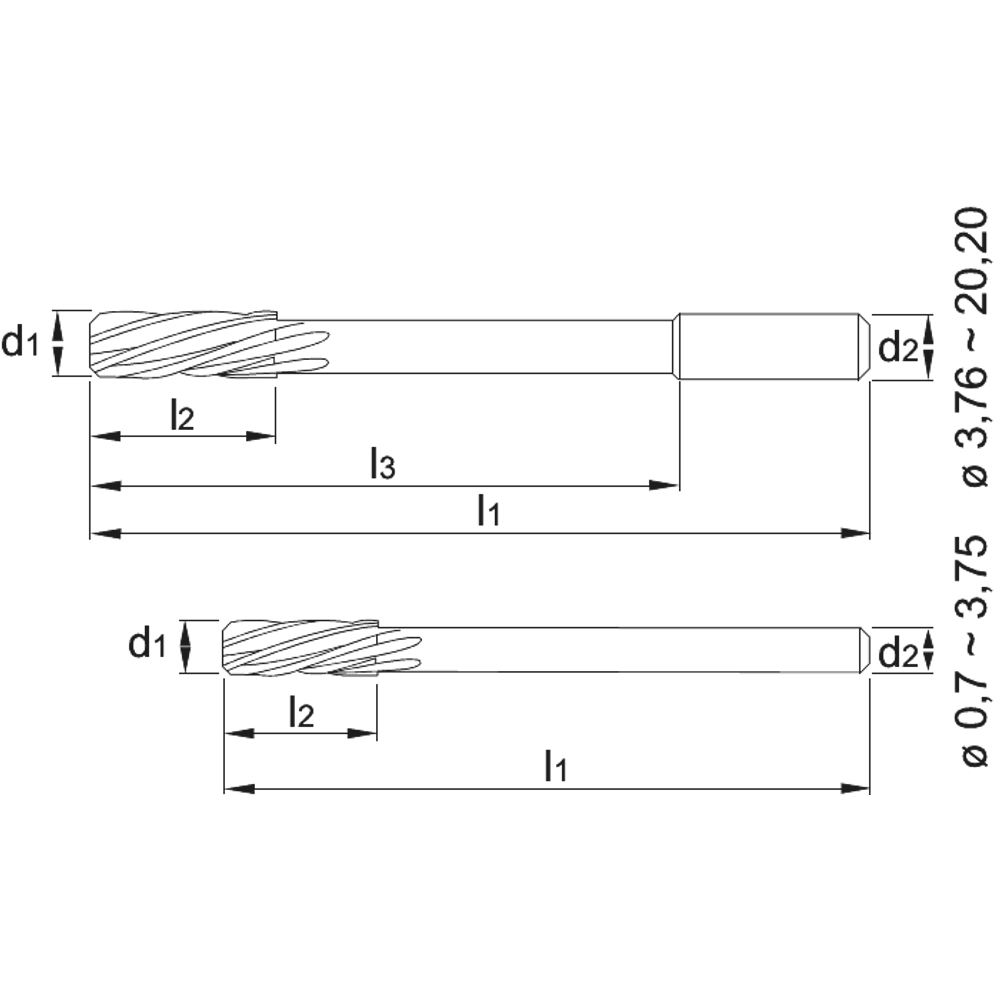

Artikelnummer	d1	l2	l3	l1	d2
513600070	0.7 mm	7 mm	-	33 mm	0.7 mm
513600071	0.71 mm	7 mm	-	33 mm	0.71 mm
513600072	0.72 mm	7 mm	-	33 mm	0.72 mm
513600073	0.73 mm	7 mm	-	33 mm	0.73 mm
513600074	0.74 mm	7 mm	-	33 mm	0.74 mm
513600075	0.75 mm	7 mm	-	33 mm	0.75 mm
513600076	0.76 mm	7 mm	-	33 mm	0.76 mm
513600077	0.77 mm	7 mm	-	33 mm	0.77 mm
513600078	0.78 mm	7 mm	-	33 mm	0.78 mm
513600079	0.79 mm	7 mm	-	33 mm	0.79 mm
513600080	0.8 mm	7 mm	-	38 mm	0.8 mm
513600081	0.81 mm	7 mm	-	38 mm	0.81 mm
513600082	0.82 mm	7 mm	-	38 mm	0.82 mm
513600083	0.83 mm	7 mm	-	38 mm	0.83 mm
513600084	0.84 mm	7 mm	-	38 mm	0.84 mm
513600085	0.85 mm	7 mm	-	38 mm	0.85 mm

Phantom Volhardmetaal Precisie Machineruimer ~DIN 212 vorm B/D x 0,01 mm
