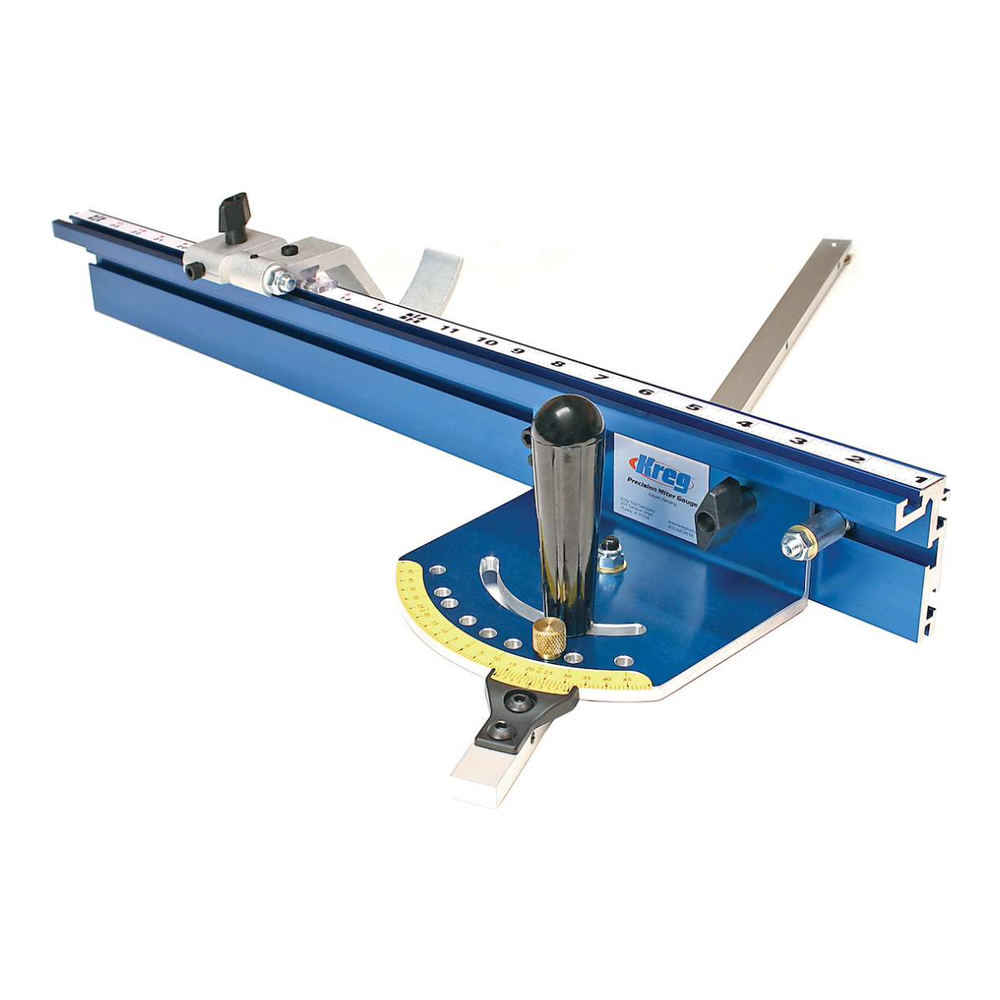

One Miter Gauge with Everything You Need for Accuracy
Why spend your time calibrating a miter gauge when you can get factory-calibrated accuracy right out of the box? Our Precision Miter Gauge requires no calibrating, and features positive stops at 0°, 10°, 221/2°, 30° and 45°, making it easy to cut miters quickly.

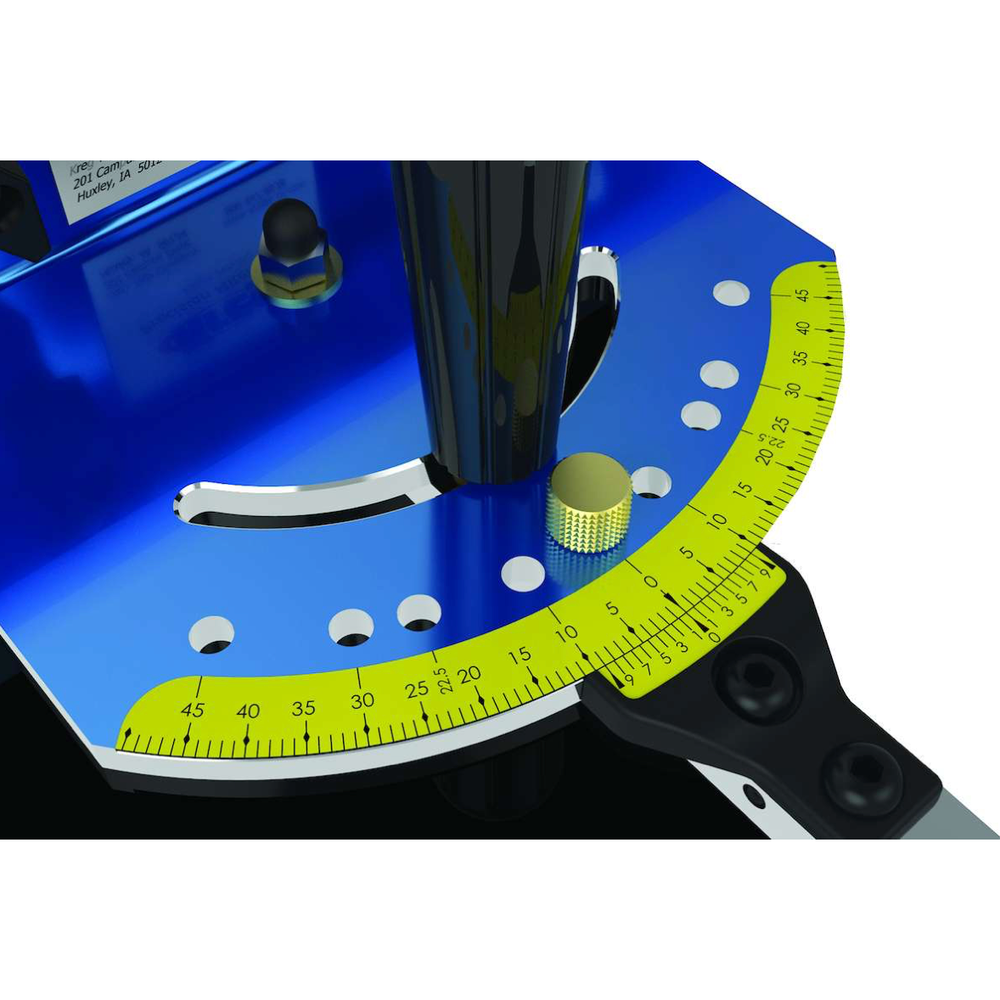

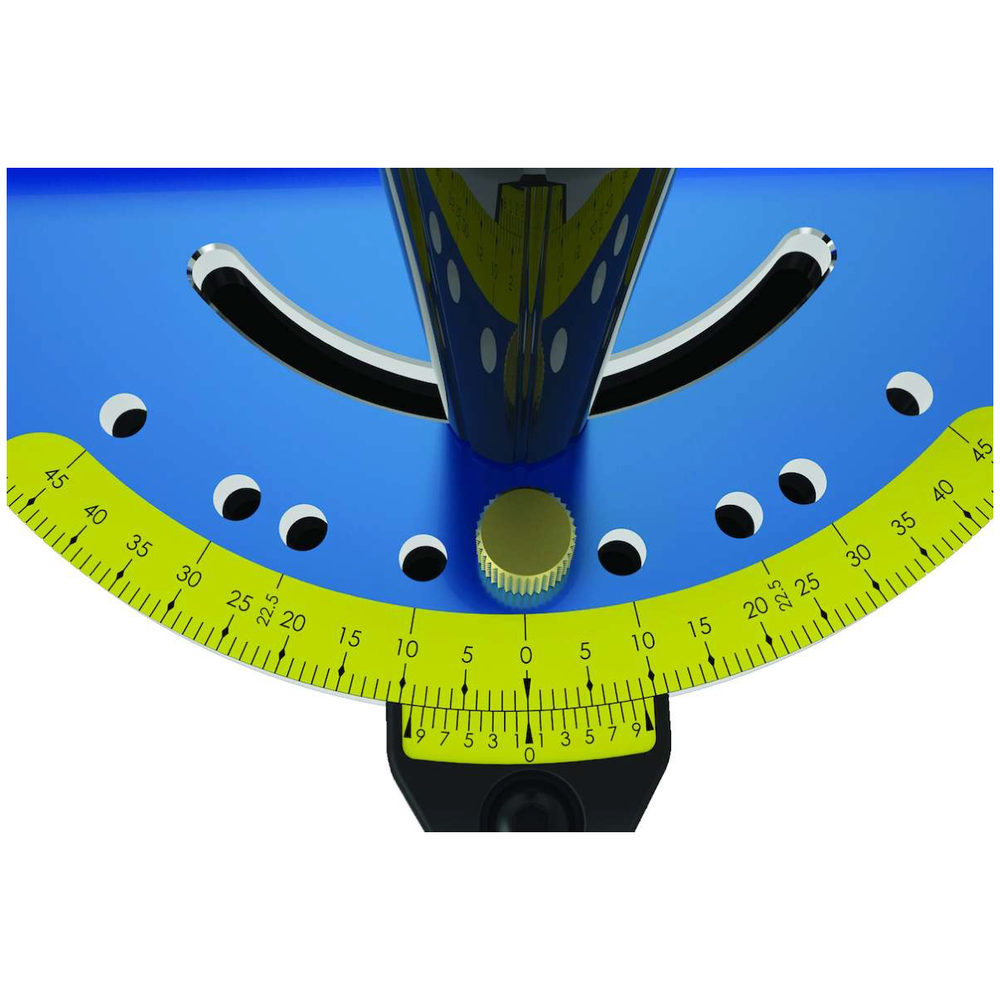

Of course, when you do want to cut a more complicated angle, the easy-to-use Vernier scale allows for fast adjustments to 1/10th of a degree.
Plus, the Precision Miter Gauge System offers a long, anodized-aluminum fence and stop system that let you easily make accurate, repeatable cuts.
Perfect Miters, Fast!
Precision is the name of the game for this CNC-milled miter gauge. We build accuracy into every feature of this product from the adjustable miter bar to the easy-to-use, incredibly accurate Vernier scale. With all of its great features, this miter gauge will give you better, more accurate cuts to ensure project success.

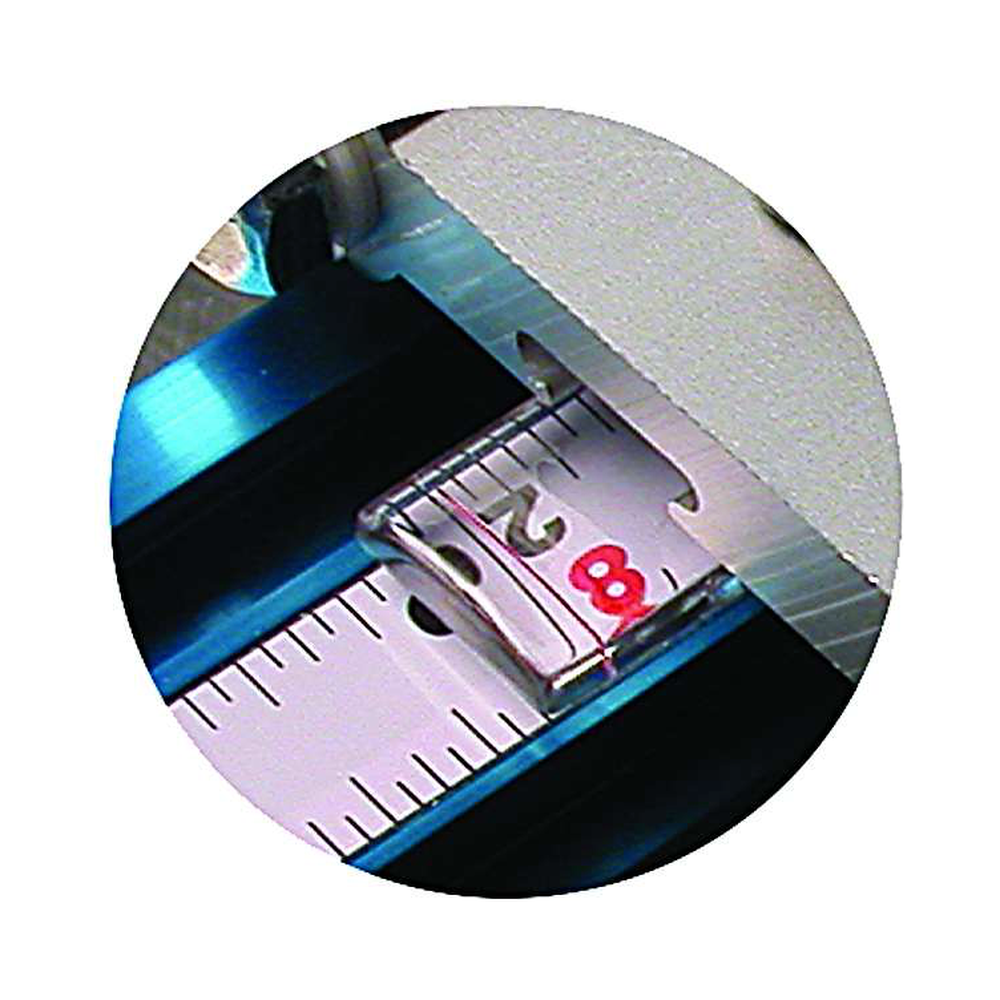

Precision Lens Cursor
Similar to the type of lens found on a quality table saw rip fence, the clear lens features a high-visibility red line that makes it easy to set the Swing Stop for precise cuts, time after time.

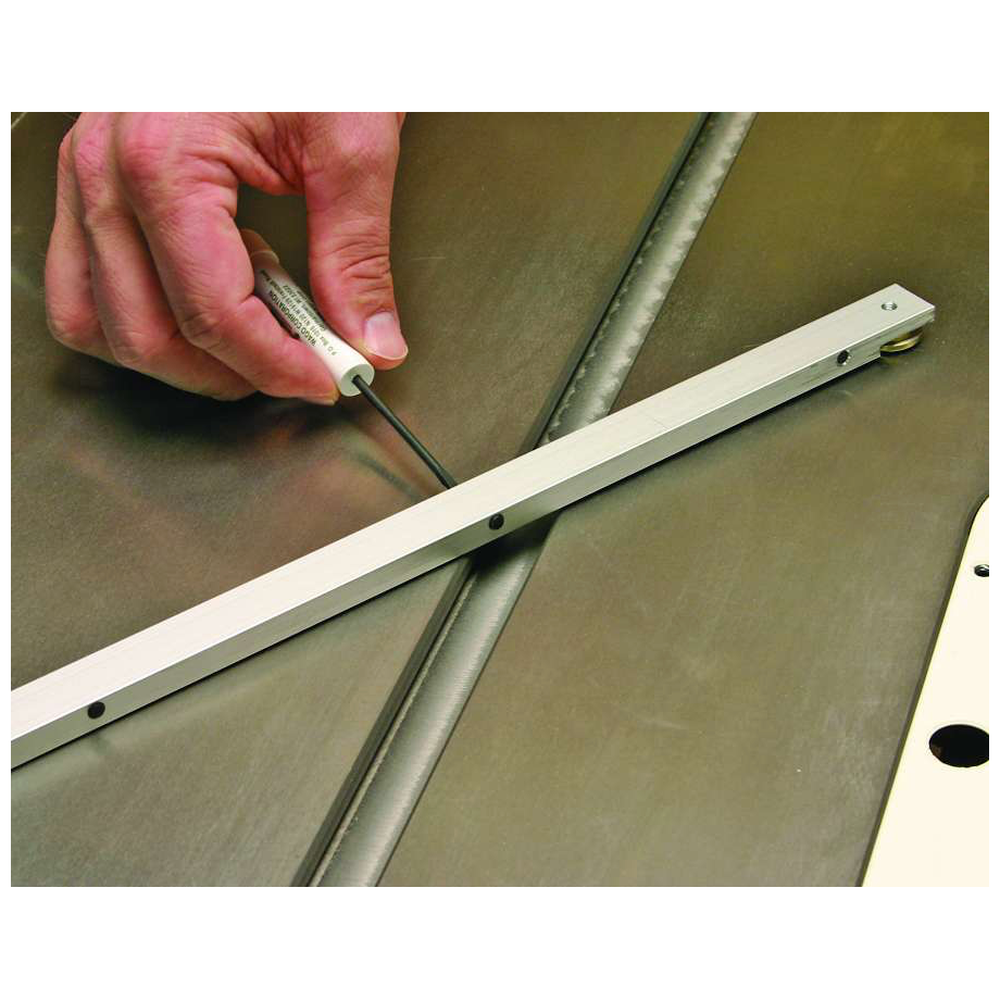

No Play in the Miter Slot
Our extremely straight 24" (610mm) anodized aluminum bar is 3/8" (9.5mm) thick by 3/4" (19mm) wide, and features five bar adjusters that you can adjust to eliminate “play” in the miter slot with the simple turn of a screw driver.
Swing Stop
The Swing Stop slides effortlessly along the fence of the Precision Miter Gauge and locks securely into place with the turn of a knob. It also features a curved foot that lets you easily swing the stop temporarily out of the way without having to remove it. That means you can quickly square one end of a board, flip it around, and then cut it to final length without ever moving the stop.
Add a Versatile Fence
The curved foot of the Swing Stop can be used as ’s “break-away” design allows you to add a versatile, heavy-duty fence to your Miter Gauge.
Technical Specifications
- T-Slot Bar 24" (610mm) long, 3/8" (9.5mm) tall, 3/4" (19mm) wide
- Positive Stops 0°, 10°, 22 1/2°, 30° and 45°
- Vernier Scale Adjusts to 1/10th of a degree
- Finish Anodized for easy clean-up
- Calibration Factory-calibrated; perfect right out of the box
- Weight 3kg
Includes
- (1) Miter Gauge, 24" (610mm) Fence with scale
- (1) zero-return stop
- (1) Swing Stop with Precision Lens Cursor
- (1) self-adhesive measuring tape
- (1) owner's manual
